2.4G wireless module,low power, wireless transmission

Place of Origin	China
Model Number	SZ05-RS485

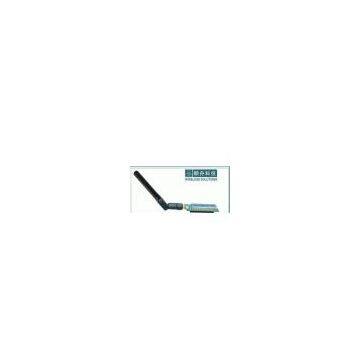

Shuncom SZ05-STD-SMA-RS485 the embedded wireless serial communication module, using the ZIGBEE wireless technical, is compliance with the industrial standards. It has advantages of long communication distance, strong anti-jamming, flexible network to make sure transparent data transmission among many devices with self-organizing star, line and mesh network topology. Wireless network Transmission distance: 200m at sight Network topology: Star, tree, link and mesh Maximal data packet: 100 bytes Node type: coordinator, router or end device (can be set) Data interface Data interface: RS485 Serial Signal: TxD , RxD, GND Baud rate: 1200~115200bps (optional) Serial parity: None, Even, Odd Data bit: 7 or 8 Parity bit: 1 Transceiver: Modulation model: DSSS Direct Spread Spectrum Frequency range: 2.045GHz~2.480GHz Wireless channels: 16 Receiver sensitivity: -92dbm Transmit power output: 3dBm Antenna: SMA Conflict prevention: CSMA-CA and CSMA-CA of GTS Power supply Power supply: DC 5V Peak current: 50mA Average current: 48mA Sleep current: 5uA Working environment: working temperature: -40℃-85℃ Storage temperature : -55℃-125℃ Size: 4.8cm*2.7cm (length*width) Applications: Building control Wireless sensors’ network Wireless industrial monitoring and control Wireless intelligent traffic light control Wireless farming control Environmental monitoring Smart home Notes Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer\\'s responsibility.
