Home > Products > Optical Fiber Patch Cord > High density Ribbon optical fiber patch cord / Pigtail MultiMode 0.3dB, 2.0 fanout

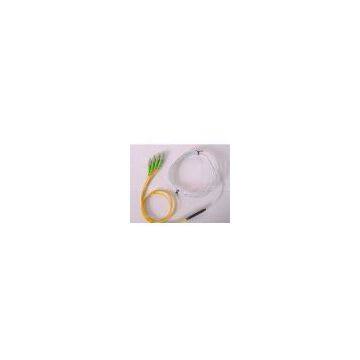

High density Ribbon optical fiber patch cord / Pigtail MultiMode 0.3dB, 2.0 fanout
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
4 - 48 core High density cable wiring system optical fiber patch cord for trunk line
-
singlemode 0.2dB and multimode 0.3dB ODC outdoor 2, 4 Channel optical fiber patch cord
-
Waterproof IP67 PTMPO optical fiber patch cord for Industrial and Aerospace
-
Mini Lc Laser optimized 50 / 125 OM3 multimode optical fiber patch cord / Optical Jumper
-
High reliability 1 * 2 FBT optical fiber splitter 1310 / 1550nm for Local access network
-
High Stability Lan optical fiber splitter (Bare) 0.25, 0.9mm cable type 85 x 18 x 10 mm
Product Details
| Brand Name | DYS | Place of Origin | China | |
| Model Number | Standard Fiber Optic Patch Cord |
Product Description
Certification:IS09001-2008.ROHS
High density Ribbon optical fiber patch cord / Pigtail MultiMode? ≤ 0.3dB, 2.0 fanout
Ribbon/Bundle Fiber Optic Patch cord/Pigtail
Applications
·Switching between trunk line and distribution line
·Connection of trunk line
·High integrated equiement and devices
·High density cable wiring system
Features
·4-48core available
·0.9, 2.0, 3.0 fanout available
·Small volume, high fiber density
|
Item |
SingleMode |
MultiMode |
|
Insertion loss |
≤0.2dB |
≤0.3dB |
|
Return loss |
PC≥50dB, APC≥55dB, UPC≥60dB |
|
|
Insert-pull test |
1000 times |
|
|
Repeatability |
≤0.1 |
|
|
Tensile strength |
≥10kg |
|
|
Operating temperature |
-40℃~ +85℃ |
|
|
Ceramic ferrule spec |
125.5um concentricity deviations:≤1μm |
127um concentricity deviations:≤3μm |
|
Suitable fiber |
9/125μm |
50/125μm, 62.5/125μm |
