Self adapt RFID access control systems with 26bit input devices, 2 card readers

Brand Name	Yuan		Place of Origin	China
Model Number	YAM100

Delivery Time:8-20days

Self adapt RFID access control systems with 26bit input devices, 2 card readers

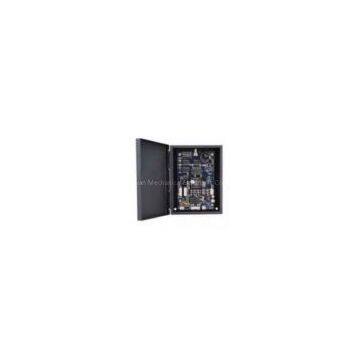

Single-door access controller
26Bit input devices
Fingerprint identification
IC card reader
with keypad

Attachable control devices:

Supporting all the Wiegand, 26Bit input devices Fingerprint identification sensor Induction IC card reader ABA(the second channel) Biometric identification technology With keypad????reading sensor

Self-adapt function, controllor automatically checks the surrounding and input the data? to the terminal.

Attachable with 2 card readers( being compatible with standard Wiegand-26 format card??reader of all kinds such as HID, Motorola etc.)?

By installation of Yuan one card solution management software, the devices can achieve anti-passback function.

A group of electric lock relays 3000/10000cards are available, store 10000/3000 memory records 16 time periods can be setup, At least 4 time periods can be set in a day

Automatically open/close at fixed time, opening/closing by remote control

When offline, user cards can be added or cancelled by the hand-hold programmer.

RS485 communication, 19200bps, 64 controllers can be connected.

By installation of application software, the devices can work as time attendance machine and patrol controller.

Slim and beautiful configuration, with communication indicator and power supply indicator.

Plug-in connector, convenient for installation

Technical parameters:

???? Working voltage: DC12V 10%more or less, Current<0.5A

???? Input parameters: Dry contact singal input

???? Output parameters: working voltage<15V, working current<1A

???? Working environment: Temperature 10degree below---60degree? Humidity:0---90%

???? Sensor interface: 12V DC, 150mA

???? 2 group of type C electric lock relay output terminal

???? Detachable wiring terminal

???? Framework material: steel and spraying paint
