Product Details
| Brand Name | Yuan | Place of Origin | China | |
| Model Number | YAT6308F |
Product Description

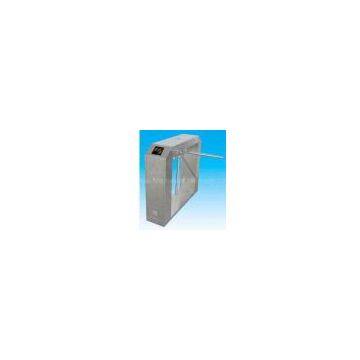

Security turnstile gate outdoor? 50 / 60Hz with DC 12V for 3 million lifespan
??The whole housing of tripod turnstile is made of 304 stainless steel, and it's rustproof, durable, and can resist external destroy. Its structure of cuboid framework and pole not only provides people with civilized and orderly transit manner but also prevents the illegal in and out effectively. Meanwhile, in the emergency, it can drop the pole promptly.
Application:
Station, port, view spot, exhibition, swimming club, enterprise and institution, special?access and so on
Advantages:
1. Being compatible wth serveral control devices IC , ID, magcard, barcode, fingerprint etc.
2. Smoothly operation, low noice
3. Unlocking is quick and reliable.
4. Automatically reset function: It will automatically lock if the pedestrian hasn’t pass through the channel in the pre-set time after the opening. The passing time is adjustable.
5. Emergency Function, the pole will automatically drop after power is off and automatically up when power on.
6. Several working modes are optional, namely two-direction card reading for limiting flow capacities, or, one passage works while another is set to forbid passing, or, one passage normally operates while another is free to pass

7. Counting Function of the controllor, LED figure display function (optional)

8. Memory Function attached in the controllor
9. With standard input, output interface, it's best choice of system integration buyers.
Specification:
|
				 Technical parameters  |
|
|
				 Housing material  |

				 304 stainless steel  |
|
				 Dimension  |

				 L1200*W280*H980mm  |
|
				 Arm length  |

				 510mm  |
|
				 Weight  |

				 67Kg  |
|
				 Power  |

				 24V DC  |
|
				 Voltage  |

				 220V, 230V, 240V, 110V, 120V  |
|
				 Frenquency  |

				 50/60Hz  |
|
				 Communication interface  |

				 RS485  |
|
				 Input interface  |

				 Dry contact signal/12V signal/DC 12V  |
|
				 Normal life-span  |

				 3 million  |
|
				 Transit speed  |

				 40 persons/min  |
|
				 Working environment  |

				 Indoor/outdoor  |
|
				 Temperature  |

				 -10 to 50  |
|
				 Relative humidity  |

				 ≤90%? no condensation  |
