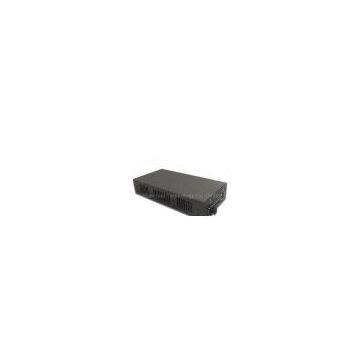

12V DC 10G XFP Fiber Optic Media Converter

FOB Price

Negotiable / Kilogram

1 Kilogram(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

Fiberroad

Place of Origin

China

Delivery Time:1 Weeks

? Real-Time conversion between 10GBASE-T (based on IEEE 802.3an) and 10GBASE-R (based on IEEE802.3ae)

? Conversion of media type between fiber (XFP connector) and twisted pair copper wire(RJ-45 connector).

? Console and USB port for extra management (optional)

? Both XFP and RJ-45 port can connect to other 10Gbps Ethernet switch for expansion. It will not obstruct the original Ethernet traffic.

? Subsidiary device for test on 10Gbps Ethernet switch with 10GBAST-T and/or 10GBASE-R Ports.

? It is a suitable subsidiary device of network equipment test between 10GBAST-T and 10GBASE-R.

? Powered by 12V DC from external adapter.

? High speed 10Gbps fiber/copper wire converter without packet loss.

? Test loopback function via console port.

Specifications?Description:

Interfaces	Left Side: ? One 10Gbps RJ-45 port ? One 10Gbps SFP+ port (mini-GBIC) Right Side: ? One RS-232 console port (RJ-45 connector) ? One Power jack
Wirespeed Cable Length	Up to 100 meters Cat.6a cable for Wirespeed transmission
Transceiver (PHY)	Teranetics chip for 10GBASE-T and NETLOGIC chip for 10GBASE-R
Temperature	Operating: 0 ℃ ~ 40 ℃ Storage: 0 ℃ ~ 50 ℃
Humidity	Operating: 0% ~ 85% RH Storage: 0% ~ 85% RH
LED Display	Five LED (SFP+, LR, Link/Rx, Loopback A, B , SYS) ? SFP+ : SFP+fiber connector is connected ? LR : Connector of 10GBASE-LR Transceiver is plugged. ? Link/Act : Network is linked/active for A and B ports ? Loopback A, B : Indicate the Loopback mode of A and B ports is enabled at the same time ? SYS :System status
Power Source Type	AC 90V~240V to 12V DC adapter
Dimensions	175 mm x 85.9 mm x 32.6 mm
