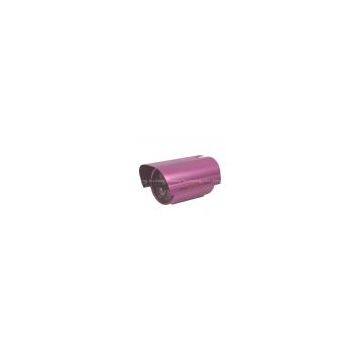

TOAN Factory 700 tvl security cctv camera

Model

TOAN-342

TOAN-342HQ

TOAN-342HQE

TOAN-342-3S

TOAN-342-4S

Image Sensor

1/3"SONY

1/3"SONY

Sony Effio-E

1/3”Sharp

1/4”Sharp

Horizontal Resolution

420TV Lines

600TV Lines

700 TV Line

420TV Lines

420TV Lines

Sync System

Internal

IR LED

IR Area

IR Series Distance

60m

Lens

4mm/8mm lens optional

IR Power On

CDS Auto Control

TV System

PAL/NTSC

Pixels

PAL:500(H)×582(V) NTSC:510(H)×492(V)

PAL:795(H)×596(V) NTSC:811(H)×508(V)

  PAL:960(H)×582(V) NTSC:967(H)×494(V)

PAL:500(H)×582(V) NTSC:510(H)×492(V)

PAL:500(H)×582(V) NTSC:510(H)×492(V)

Usable Illumination

0 Lux

S/N Ratio

color>48dB,B/W>52dB

Video Out

Composite Signal (1.0Vp-p, 75Ω)

Electronic Shutter Time

Auto:PAL 1/50-1/100,000Sec;NTSC 1/60-1/100,000Sec

Operation Temperature

-10°C ~ +50°C RH95% Max

Storage Temperature

-20°C ~ +60°C RH95% Max

White Balance

Auto

Power Source

DC12V±5%
