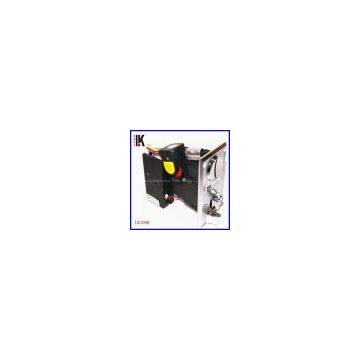

LK100B Coin Selector

LK100B Game Machine Accessories/coin selector/coin acceptor for game machine:

1.Take out the plastic coin from the slot, put  into  your coin;

2.Choice NO/NC (on/off) switch which is COIN signal.

3.On panel,choice switch SW2 which is COIN signal; 20ms is quick signal, suit the machine which need quickly throwing coin;40ma is need middle-quick signal, suit normal machine; 60ms is slow signal, suit normal fun machine;

4.VR switch is sensitivity control for coin filtrating, clockwise (+) turn, it accepts large tolerance coin, anticlockwise (-) turn, it just accepts small tolerance coin;

5.If the coin is not easy to be passed on Exactness position of SW3, please transfer SW3to normal position, and adjust VR to suitable position;

Function:

1.Prevent false coin

2.Counter connector available

3.Suitable all the coins diameter

4.Pulse signal adjustable 20/40/100

Product parameters:

Coin Diameter: 18 mm ~ 31 mm
Coin Thickness: 1.2mm ~ 2.4mm
Voltage: DC 12V ±10%
Temperature: -15°C~+75°C

Package: 30 pcs/ctn

Dimension : 455 x340x272 mm

G.W: 12.3 kg
