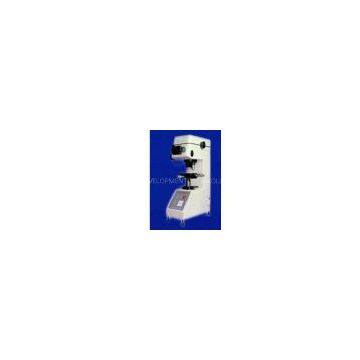

HV-1000 Automatic Micro Vickers Hardness Tester 0.098N / 0.246N / 0.49N 5HV ~ 2500 HV

HV-1000 Automatic Micro Vickers Hardness Tester 0.098N / 0.246N / 0.49N 5HV ~ 2500 HV

The micro-Vickers hardness tester HV1000 is especially well suited for high precision hardness testing

of small and/or thin specimens such as sheet, foil, coatings, ceramic products, and hardened layers. To

ensure a satisfactory indentation, the HV1000 features automatic loading and unloading operations, a very

precise loading mechanism and a robust lever system. The micro-computer controlled system ensures an

absolutely precise hardness measurement with adjustable dwell time

Type

Micro Vickers hardness tester

Testing forces (N) 0.098 / 0.246 / 0.49 / 0.98 / 1.96 / 2.94 / 4.90 / 9.80

Testing forces (gf) 10 / 25 / 50 / 100 / 200 / 300 / 500 / 1000

Load control Automatic loading and releasing

Holding Time (s) 5~60

Magnification of microscope x
400x for measurement, objective 40x eyepiece 10x
100x for observation, objective 10x eyepiece 10x

Max. measuring length (μm) 150

Micrometer resolution (μm) 0.5

Testing range 5HV~2500 HV

Dimension of micro test table 100X100 mm

Travel range of micro test table 25X25 mm

Max. Height of the specimen 65mm

Max. width of the specimen 85mm

Dimension (mm) 480 x 405 x 290

Net weight (kg) 25



Standard Package
MODEL HV1000

Main machine 1

Indenter? Micro Vickers indenter x 1

Testing table Large leveled / medium leveled /V shaped, 1 for eac

Test block X-Y stage / fine wire / fork-shaped / thin specimen, 1 for each type

Micrometer eyepiece 1

Objective 10x x 1, 40x x 1

Spare fuse 2

Weight shaft 1

Weight 6

Level 1

Operation instructions 1

Bulb 2








?
