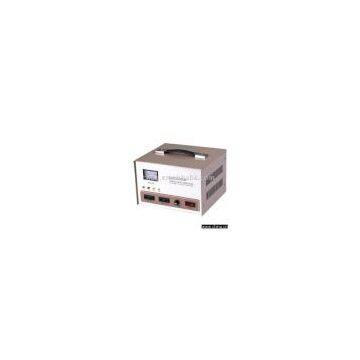

Sell Voltage Regulator & Voltage Stabilizer

Place of Origin	China

Model No.:SVC, TDGC
Product Origin:China
Brand Name:CHOG
Price Terms:FOB Shanghai
Payment Terms:T/T
Certification:ISO9001, CE
Description:SVC series single-phase high accuracy full automatic AC voltage stabilizers with one series of four main products are composed of the contact type. They have a self-coupling voltage regulator, servo motor, and automatic control circuit. When the voltage of the network is not steady or the load varies, the automatic sampling control circuit makes a signal to drive the servomotor to adjust the position of the carbon brush of the self-coupling voltage regulator so as to have the output voltage regulated to the rating and to obtain the steady state scope. They are applied in communication systems, safety alarm system, checkout equipment, office equipment, medical equipment and industry equipment laboratories. Features: 1) Input voltage: 150V-250V (single phase) 2) Output voltage: 220V and 110V (single phase) 3) Stabilization accuracy: 220V±3% and 110V±6% 4) Frequency: 50Hz/60Hz 5) Efficiency:>90% 6) Voltage: 246V±4V 7) Ambient temperature: -10-+40 8) Relative humidity: <95% 9) Temperature rise: <60 10) Wave form distortion: no additional waveform distortion 11) Overload power factor: 0.8 12) Dielectric strength: 1,500V/min 13) Insulation re stance:>5m 14) Desk type
