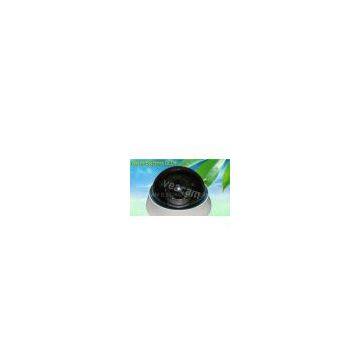

SHARP CCD DC12V 450mA Dome Infared Camera with Built - in 3 - Axis Bracket

Model

VCDHB11

VCDHB10

VCDHB9

VCDHB7

VCDHB5

VCDHB4

VCDHB1

Image Sensor

1/3' SONY CCD

1/3' SONY CCD

1/3' SONY CCD

1/3' SONY CCD

1/3' SONY CCD

1/3' SONY CCD

1/4' SHARP CCD

Horizontal Resolution

Effio 700TV Lines Low Illumination, OSD, ATR, 2D-NR

Effio 650TV Lines Low Illumination, DWDR, OSD

600TV Lines Low Illumination

540TV Lines Low Illumination

480TV Lines

420TV Lines

Pixels

?PAL:976 (H)× 494(V) NTSC :976 (H) ×582 (V)

????PAL:795 (H)× 596(V)??????????????????? ????NTSC :811 (H) ×508 (V)?

PAL:752(H)×582(V)?????????? ?NTSC:768(H)×494(V)

PAL:500(H)×582(V)????? ?NTSC:510(H)×492(V)

TV System

PAL/NTSC

Lens

4-9mm Manual Zoom Lens
2.8-12mm Lens Optional

Sync System

Internal

IR Status

Under 10 Lux By CDS

Usable Illumination

0.001Lux/F2.0

0.0005Lux/F2.0

0.01Lux/F2.0

IR Power On

CDS Auto Control

S/N Ratio

≥65dB (AGC OFF)

≥54dB (AGC OFF)

≥48dB (AGC OFF)

Gamma Correction

0.45

Video Out

Composite Signal (1.0Vp-p, 75Ω)

Scanning System

PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec

Electronic Shutter Time

Auto:PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec

Operation? Temperature

-10℃ ~ +50℃ RH95% Max

Storage? Temperature

-20℃ ~ +60℃ RH95% Max

White Balance

Auto

Power Source

DC12V 450mA

Dimension

91(H)*127(D)mm

Weight

600g
