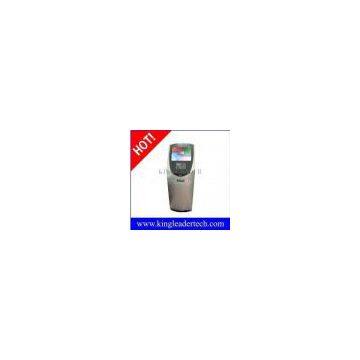

SAW touch screen Payment ticketing kiosk with barcode scanner and printer Customizable

Technical Specifications

TFT LCD Display

- Resolution: 1280x1024(17″and 19″)

- Brightness: 250~300 nits

- Contrast ratio: 450:1

- Response time:8 ms

Touch Screen

- Vandal-proof SAW touch screen

- Material: Heat tempered glass with thickness 6mm

- Resolution: 4096*4096

- Deviation of error: <2mm

- Light Transmittance: ≥ 92%

- Surface Hardness:? 7 Mohs scale

- Lifetime:50, 000, 000 times at one single location

- Response time: less than 16 ms

- Touch activation force: 10~100g

Enclosure

- Durable steel enclosure (different colors for option)

- Built-in power control panel, and hi-fi speakers.

- Two cooling fans for computer board and main body separately

- RJ45/RJ11 interface

- Large access doors with tubular locks/keys

Mother Board

- CPU: Intel Pentium dual core E5300?

(upgradeable on request)

- RAM:?1GB (upgradeable on request)

- Hard Disc: 250GB (upgradeable on

request)

Operation System

LINUX/Win3.X/98/2000/NT4.0/XP

Working Voltage

AC 220V, 50 Hz or 110V, 60 Hz for option?

Ambient Environment

- WorkingTemperature?

-20°C~65°C;RelativeHumidity: 30%~90%?

- Storage Temperature:?

-40°C~80°C;Relative Humidity: 5%~95%

Dimensions

-?138(height) x 52(width) x 40(depth) CMs

-? Packing dimension: 150 x 60 x 46cm

Peripherals

Paystation, barcode scanner and 80mm thermal printer
