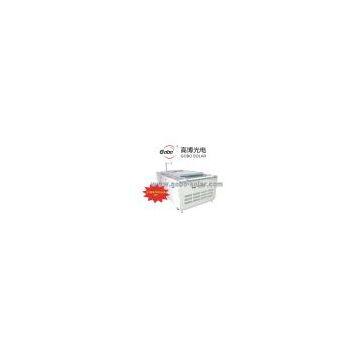

Solar Module Tester ( Sun Simulator)

FOB Price

USD $50000 - $70000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	gobo		Place of Origin	China
Model Number	GSMT-V-3A

Applicaitions:

Electric performance test and on the file for Mono-Si / Poly-Si solar panel.

Equipment Features:

Class A AM1.5G irradiation spectrum;
Pneumatic bumper pin-contact, Pin-contact, on the sunny side and planer contact on the rear side;
4-strand testing mode and 14-byte 4-channel high-speed synchronous acquisition;
10 preferences on display and testing data illustration in terms of sheets and curves;
Irradiance and temperature self compensating;
Vocal test reporting and screen counter for flashes;
High reliable, high precision, high efficiency;
Inported top key components and unique technologhy;
24/7 tools uptime and 300,000 flashes for life-time of Xenon lamp

Technical Specification:

Items	GSMT-H-3A
Lamp Spectrum	IEC60904-9 and JISC8933 [Class A]
Light intensity	100mW/cm²(20~120mW/cm² continuous adjustable )
Uniformity of Irradiation	≤2% [Class A]
Instability of Irradiation	≤2% [Class A]
Consistency of Testing	≤0.5%
Pulse Width of Single Flash	10 ms
Effective Testing Area/Watts	2000mm×1100mm 5W~300W
Measuring voltage	0~100V (resolution 1mV)
Measuring current	0~20A (resolution 1mA)
Test Parameters	Isc,Voc,Pmax,Vm,Im,FF,EFF,Temp,Rs,Rsh,Ir
Data acquisition	4-bit 4-channel high-speed synchronous acquisition card

Options:

Sliding rail; Infrared temperature sensor; Non-standard user-oriented design.
