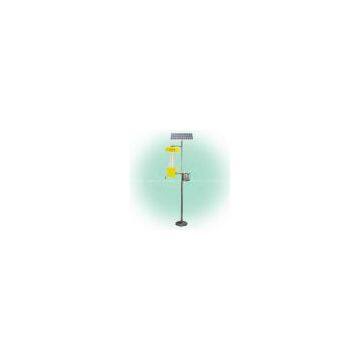

Jiaduo insect light trap

Jiaduo Frequoscillation Pest-killing Lamp utilizes the ways of light, wave, color, smell to trap and kill pests, which lures the pests of many species and great quantities. it has been generally applied in more than 30 provinces in China and approved by National Agricultural Technology Extension and Service Center, Ministry of Agriculture, China.

technical parameters:

1.Trapping light source :  there are twenty different kinds of trapping light source.

 2.lamp size: 340×340×720mm

3.power supply voltage/frequency     AC220V/50Hz

4.scope range of the fluctuation of voltage: 160V~280V(normal operation)

5.Power of the whole :  ≤35W

ed life(working life) :  5 years

7.insulating resistance  : ≥2.5MΩ

ing current of Inductive ballast:

When the voltage is 160V, the current is more than 220mA,

When the voltage is 280V, the current is more than 420mA

9.when the working volt is 200~280V,the tube will be started in 5 seconds

10.when the working volt is 160~200V,the tube will be started in 15 seconds.

11.the area of the bouncing screen:  ≥0.15square meter

14.the space between the wire can be adjusted according to the pests(normally, less than 10mm)

15.Time control: According to the habit of the pests, we can use a special instrument which can set up different period of time to trap the pests.

16.Automatic protection in the rain:  when the humidity is more than 95%RH, the lamp enter into auto protection; when the humidity is less than 95%RH, it can start by automatic.

17.The control area of a single lamp(radius): more than 120m on farm, more than 80m on forestry.

18.Insulated column: high temperature resistance in momentary, corrosion protection, high pressure resistance, and the insulated column has no carbonization if the arc time of high voltage fence lasts 30 minutes in rainy day.

19.The light turns on in the evening and turns off in the morning by auto.

 Character:

it lures the pests of many species and great quantities, decrease the amount of eggs and larvae in the field greatly
substitute for pesticide, it can reduce the applied amount of chemical pesticide
it can postpone the occurrence of insecticide resistance of pests
it can protect the natural enemies
It is innocuous to human and livestock
it can decrease the environmental pollution, maintain ecological equilibrium.
it is safe when someone touch it by mistake
using solar energy, it can save power ,low cost
light control (light sensor), the light turn on in the evening and turn off in the morning by auto.

Application Scope:
    Agriculture, forestry, vegetable, tobacco, warehousing, wine brewing, garden, orchard, urban landscaping and aquiculture etc.
