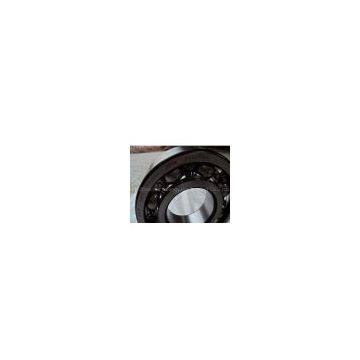

Deep Groove Ball Bearing 6204 6001
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | 6204 6001 |
Product Description
(1)ISO 9001:2000 certificated.
(2)ID: 4mm~200mm
(3)Material:GCr15 or GCr15SiMn
(4)competitive price
Widely used in various applications,and accommodate radial load and axial loads in both directions
1 cage:stamped steel cage or solid brass cage is used.when the outer diameter of bearing is no more than 400 millimeter,stamped steel cage is used
2 bearing pat no.
6000 6200 6300 6400 6800 6900 16000 62200 62300 & NR series bearings
3 extra-large size ball bearings,which ID ranges from 180mm to 6300mm
4 material:chrome steel,carbon steel,stainless steel and ceramic bearing
5 special bearings and nonstandard bearings according to customers’ drawings & samples
6 shield/closure:open ball bearing,Z,ZZ,RS,2RS,2RZ
7 Tolerance code:ABEC-1 ABED-3 ABEC-5
8 vibration level code:V3 V2 V1
9 internal clearance:C2 C3 C4 C5
10 high-speed and high temperature resistance
|
H&X |
Bore | Outer Diameter | Width | Radius | Basic Load Rating Ibs. | Weight | |||||
| Bearing | d | D | W | r | Ibs. | ||||||
| No. | mm | in. | mm | in. | mm | in. | mm | in. | Dynamic | Static | |
| C | Co | ||||||||||
| 6000 | 10 | 0.3937 | 26 | 1.0236 | 8 | 0.315 | 0.5 | 0.02 | 1030 | 440 | 0.042 |
| 6001 | 12 | 0.4724 | 28 | 1.1024 | 8 | 0.315 | 0.5 | 0.02 | 1150 | 540 | 0.049 |
| 6002 | 15 | 0.5906 | 32 | 1.2598 | 9 | 0.3543 | 0.5 | 0.02 | 1260 | 635 | 0.066 |
| 6003 | 17 | 0.6693 | 35 | 1.378 | 10 | 0.3937 | 0.5 | 0.02 | 1530 | 755 | 0.086 |
| 6004 | 20 | 0.7874 | 42 | 1.6535 | 12 | 0.4724 | 1 | 0.02 | 2110 | 1140 | 0.152 |
| 6005 | 25 | 0.9843 | 47 | 1.8504 | 12 | 0.4724 | 1 | 0.039 | 2260 | 1320 | 0.176 |
| 6006 | 30 | 1.1811 | 55 | 2.1654 | 13 | 0.5118 | 1.5 | 0.039 | 2970 | 1860 | 0.256 |
| 6007 | 35 | 1.378 | 62 | 2.4409 | 14 | 0.5512 | 1.5 | 0.059 | 3600 | 2310 | 0.342 |
| 6008 | 40 | 1.5748 | 68 | 2.6772 | 15 | 0.5906 | 1.5 | 0.059 | 3750 | 2590 | 0.423 |
| 6009 | 45 | 1.7717 | 75 | 2.9528 | 16 | 0.6299 | 1.5 | 0.059 | 4700 | 3400 | 0.54 |
| 6010 | 50 | 1.9685 | 80 | 3.1496 | 16 | 0.6299 | 1.5 | 0.059 | 4900 | 3750 | 0.575 |
| 6011 | 55 | 2.1654 | 90 | 3.5433 | 18 | 0.7087 | 1.5 | 0.059 | 6350 | 4850 | 0.849 |
| 6012 | 60 | 2.3622 | 95 | 3.7402 | 18 | 0.7087 | 2 | 0.079 | 6600 | 5200 | 0.915 |
| 6013 | 65 | 2.5591 | 100 | 3.937 | 18 | 0.7087 | 2 | 0.079 | 6850 | 5650 | 0.959 |
| 6014 | 70 | 2.7559 | 110 | 4.3307 | 20 | 0.7874 | 2 | 0.079 | 8550 | 6950 | 1.33 |
| 6015 | 75 | 2.9528 | 115 | 4.5276 | 20 | 0.7874 | 2 | 0.079 | 8900 | 7550 | 1.41 |
| 6016 | 80 | 3.1496 | 125 | 4.9213 | 22 | 0.8661 | 2 | 0.079 | 10700 | 8950 | 1.87 |
| 6017 | 85 | 3.3465 | 130 | 5.1181 | 22 | 0.8661 | 2 | 0.079 | 11100 | 9700 | 1.96 |
| 6018 | 90 | 3.5433 | 140 | 5.5118 | 24 | 0.9449 | 2.5 | 0.098 | 13100 | 11200 | 2.56 |
| 6019 | 95 | 3.7402 | 145 | 5.7087 | 24 | 0.9449 | 2.5 | 0.098 | 13600 | 12100 | 2.67 |
| 6020 | 100 | 3.937 | 150 | 5.9055 | 24 | 0.9449 | 2.5 | 0.098 | 13500 | 12200 | 2.76 |
