Multi-section Printability Tester

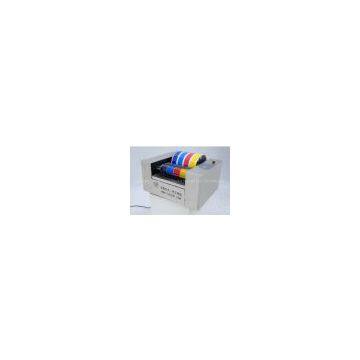

 CP225-A INK PROOFER


Input Voltage: 220V, 50/60Hz

Power: 250W

Ink distributing method: Automatic distributing

Printing pressure: The printing pressure can be precisely adjusted according to the thickness of the materials on the panel.

Ink distributing time: 1-120sec, adjustable

Ink distributing speed: There are three types of speed can be selected from the control panel of the equipment, and it is 550,700,900rpm . Also we can adjust the speed from inside by stepless frequency conversion Timing

printing speed: There are three types of speed can be selected from the control panel of the equipment, that is 10, 16, 22rpm. Also we can adjust the speed from inside by stepless frequency conversion Timing

Dimension: 525mmx430mmx280mm

Printing roller Total length: 225mm

Effective area of ink color bar: 38x225(5 bars)  45x225(4 bars)  106x225(2 bars), optional

The maximum color spreading area is 255mmx210mm

Net weight: 75Kgs

Features of CP Ink Proofer
1.When the ink proofer co-work with ink meter, the proofing will be high repeated.
2.Can print on different materials, including writing paper, coat paper, film and matte paper.
3.Safe and easy to operate
4.East to clean and maintenance

Seven Functions of CP Ink Proofer by Printing Simulate
1.Spot Color proofing:The multi-stage proofer can print color stripes of different colors at the same time, or print a same color in different thickness. It can also print new and old ink on the same printing material to make comparison, and highly improve color comparison efficiency.
2.Four colors inspect:Can inspect ink's hue, shine and deepness. To control ink quality to achieve printing quality control.
3.Provide customer special color to approve before printing
4.Inspect changing degree between wet ink and dry ink:Ink proofer makes the color strip and we can find the color hue after dry. (For example:the phenomenon that purple color and deep blue color will change after dry can be eliminated before printing.)
5.Co-work with ink meter, the used quantity of special color ink can be anticipated, thus greatly reduce the remaining ink wastage and store accumulation.
6.Digital management:Co-work with spectrophotometer to inspect color, we can measure the color stripe's data value (Lab value).
7.Co-work with other relevant instruments to foresee the features of ink such as abrasion resistance, hardening time, light resistance
