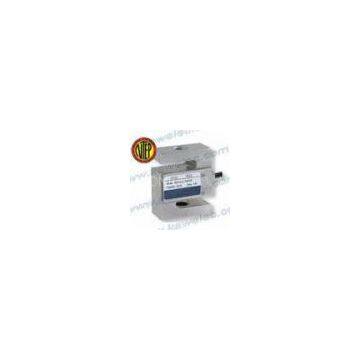

S-type Load Cell KH3G

Place of Origin	China
Model Number	KH3G

Kaw Electronics Co,. Limited is dealing with following products: Load cells and weighing equipments, Telecommunication parts and two-way radio accessories, Security and RFID Guard Touring System, GPS and Navigation accessories. Over the years, we have built up an international network on long-term basis. Our quality products and excellent service have won us great reputation in the global market. Contact person: Brent Xu(sales Manager) Kaw Electronics Co., Ltd TEL: 86-755-86640950 Email: sales@kawelec.com Website: Add: HaiDe Mansion, Nanxin Road, Nanshan District, Shenzhen, China. 518052 células de carga, S célula de carga, Shear células del haz de carga, Un solo punto de las células de carga, Calibres, Testers y Equipos de medicion, Herramientas, C3 Accuracy, S TYPE Load cells, Shear Beam Load cells, Single Point Load cells, Transducer, Electronics Scales, Weighing equipment, Measuring instrument, Gauges Parts, load sensors,Load cells, Sensors, Transducer,load measuring, pressure sensors Measurement and regulation equipment and instruments - pressure Measurement and regulation equipment and instruments - speed load pin,load cell,custom made load cell,weighing load cell,standard reference transducer,torque transducer,load limiter, load measuring shackle,force measurement on cable, Specification Accuracy OIML R60 C3 Output sensitivity(=FS) mV/V 2.0±0.2 Maximum Capacity(Emax) kg 10, 20, 30, 50, 100 200, 350, 500 Maximum number of load cell intervals(Nlc) 3000 Ratio of minimum LC verification interval Y=Emax/Vmin 10000 - 15000 6000 Combined Error %FS ≦±0.023 Safe overload of Emax 1.5 Ultimate overload of Emax 3 Zero Balance of FS <±1.0% Excitation, recommended voltage V 5 ~ 12 Excitation maximum V 18 Terminal resistance, input Ω 430 ± 50 Terminal resistance, output Ω 351 ± 2 Insulation impedance MΩ ≥5000(at 50VDC) Temperature range, compensated ℃ -10 ~ +40 Temperature range, operation ℃ -35 ~ +65 Element material Stainless steel Ingress Protection (according to EN60529) IP68 Recommended torque on fixation bolts Nm M8(20-50kg):15 M8(<300kg):25 M10:40 ATEX classification(optional) II1G Ex ia II1C T4 II1D Ex iaD 20 T73°C II3G nL IIC T4
