Home > Products > SSMB Connector > SSMB male straight connector for SFF-50-1.5-1 cable

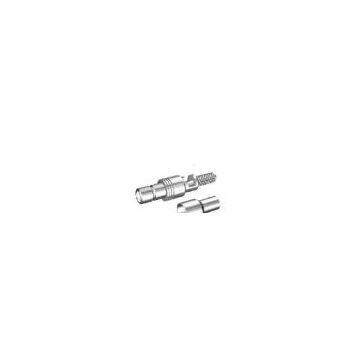

SSMB male straight connector for SFF-50-1.5-1 cable
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | SSMB-ZJ2C |
Product Description
Type SSMB is one kind of microminiature RF coaxial connectors with snap-on coupling mechanism , which is the smaller version of SMB connectors, they have the excellent performance of light weight, small size, easy to connect/disconnect, vibration-proof, high reliability,Which are widely used is connecting RF coaxial circuits and cable in miro electrical instrument. The interface mating dimensions and technical characteristics are according to the standard of MII-C-39012, CECC22170 and IEC169-19
|
Key Performance |
|
|
Temperature Range |
-55~+155°C |
|
Insulation resistance |
≥1000MΩ |
|
Dieletric withstanding voltage |
500v(ms) |
|
Characteristic impedance |
50Ω |
|
Frequency range |
0-3GHz |
|
Contact resistance |
Center conductor≤5mΩ Outer conductor≤2.5mΩ |
|
VSWR |
Straight≤1.22(0-1GHz) ;≤1.35(1-3GHz) Right angle≤1.22(0-1GHz);≤1.35(1-3GHz) |
|
Durability |
500(cycles) |
|
Materials&Plating |
|
|
Body |
Brass, gold plating |
|
Male center contacts |
Brass, gold plating |
|
Female center contacts |
Beryllium or copper, gold plating |
|
Insulators |
PTFE |
|
Gaskets |
Sillion rubber |
|
Crimp ferrule |
Copper alloy, gold or nickel plating |
SSMB Series Products
Semi-rigid Cable Connectors
1. Straight Cable Jacks
2. Straight Cable Plugs
3. Right Angle Cable Plugs
Flexible Cable Connectors
1. Straight Cable Jacks
2. Straight Cable Plugs
3. Right Angle Cable Plugs
PCB Connectors
1. Straight PCB Jack
2. Straight PCB Plugs
Bulkhead Mount Connectors
1. Right Angle PCB Jacks
2. Straight Bulkhead Jacks
