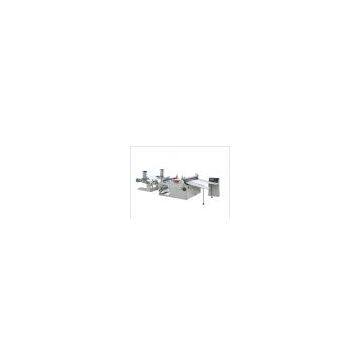

ALA-PHJA Series Cross Cutting Machine
- 500 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
PHJ Serirs Cross Cuttong Machine
-
ALA-XHQ Light Series Cutting Machine
-
ALA-QD-300 Model High Speed Automatic Segmenting Machine
-
ALA-QD-300 Model High Speed Automatic Segmenting Machine
-
ALA-QFJ-IV Slitting Machine and Rewinding Machine For Paper
-
ALA-QFJZ-1100/1800 Series Micro-computer Control Paper Slitting Machine
Product Details
| Brand Name | AOLIAO | Place of Origin | China | |
| Model Number | ALA-PHJA |
Product Description
Use:Suitable for cross cutting White paperboard, kraft paper, Laminates Paper/Plastic ,Plastic hard sheets roll material etc.
Character:Computer control (Auto length-position, alarm when complete, auto-stop, meter counting),Servo motor length-position, back unwinding,magnetic powder brake,flat blade cut off,Material-delivery press-roller,automatic error correction(B) Frequency adjusting speed; Extra exchange function:1:Cutting &printing photosensitive tracking(G)
Main machine is made by: armor plate, cast iron, profiled bar.
|
Model |
1100 |
1300 |
1600 |
|
Max crosscut length |
1500mm |
1500mm |
1500mm |
|
Max crosscut width |
1050mm |
1250mm |
1550mm |
|
Max crosscut speed |
60mm |
60mm |
60mm |
|
Orientation precision |
±0.2mm |
±0.2mm |
±0.2mm |
|
Cutting sheets |
20-150pcs/min |
20-150pcs/min |
20-150pcs/min |
|
Material Dia(manually material on) |
1500mm |
1500mm |
1500mm |
|
Electro-power |
6.5kw |
7.9kw |
9kw |
|
Machine Weight |
2000kg |
2500kg |
3000kg |
|
Material Thickness |
50g-700g |
50g-700g |
50g-700g |
|
Overall dimension |
5500x2100x1500 |
5500x2400x1500 |
5500x2700x1500 |
