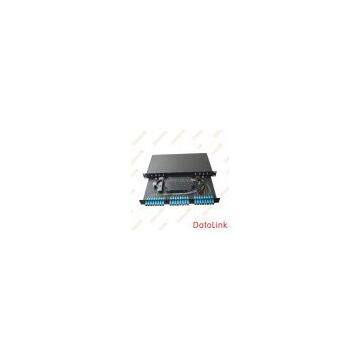

Fixed Rack Mount Type Patch Panel 24cores Type2

Place of Origin	China
Model Number	DTLPP -RF24(2)

1. Description:
Fiber optic patch panel provides efficient cable connections between outside plant cables and equipment inside the buildings and communications facilities.
Box integrates fiber splicing, storage and cable connections together in a unit. They can manage both bundle type and ribbon type fiber cables. It is with large working space to integrate the pigtail, cables and adapters for fiber management.
This fixed type fiber optic patch panel is standard 19 inch design, cold roll steel box, fixed type, with metal front cover; Adapter plate of 180x40mm can be unloaded; Applicable to existing systems.

2. Features:
Cold-roll steel, electrostatic painting
ABS plastic tray inside, 12-24cores per tray
Different adapter plate available: FC, SC, LC, ST
Suitable for 19'' standard optic distribution cabinets
With front cover; 4 fiber cable entry ports at rear side
Cable entry ports suitable for single fiber, bundle & ribbon fiber cables
Reasonable design ensures the cables are in good order
Rack mounted fixed type, indoor using;
White, black, grey color painting optional
12, 24, 48, 96 capacity customized

3. Application:
Mainly used for cable inlet and fixing; Fiber splicing and protecting; Pigtail storage; Patch cord storage, connection and use management between wiring closets and equipments.
Applicable to Telecommunications, Fiber to the home (FTTH), LAN / WAN, CATV etc. System projects.

4. Parameters:
Operating temperature: -5~+40 degree
Relative humidity: ≤ 85%(+30 degree)
Atmospheric pressure: 70~-106Kpa
Durability: >1000 times
Standard working wavelength: 850nm, 1310nm, 1550nm
