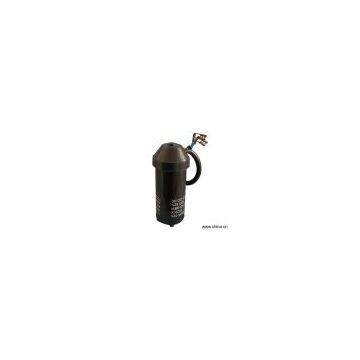

Sell Motor Start Capacitor

Model No.:CD60-4
Product Origin:China
Brand Name:HANDING
Price Terms:
Payment Terms:
Certification:TUV, CE, SGS
Description:Product Name: Motor Start CapacitorModel Number: CD60-4Place of Origin: ChinaThis product uses high-purity electron aluminum foil as its polar plate, and is wrapped with the dielectric materials of capacitor tissue and aluminum oxide. It has non-solid electrolyte, metal shell, and double-tab and lead wire terminal. It can be used in the start-up of single-phase AC motor (50Hz or 60Hz) to gain greater angular force under lower stating current. It is characterized by its excellent electric property, stable and dependable quality. Technical features: 1) Working temperature range: -10 ~ +55°C 2) Rated voltage: 110 ~ 330V AC 3) Capacity volume variance: +30% 4) Umax: a) UR<160V, Umax: 1.25UR b) UR>160V, Umax: 1.2UR 5) Loss tangent: ≤0.15 6) Between leading-out ends: between leading-out ends: 1.2UR, 2S no breakdown 7) Between leading-out end and shell: between leading-out end and shell: 2,000V AC, no breakdown Outer packing: Standard export carton
