Home > Products > New product > capsule pressure gauge

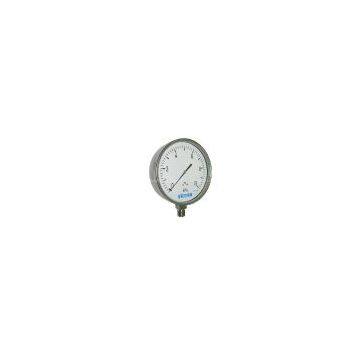

capsule pressure gauge
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Exact | Place of Origin | China | |
| Model Number | m1 |
Product Description
|
Application:
|
Capsule Pressure Gauges measure low range pressure from 250mmwc/25mbar to 10000mmwc/1000mbar.
Common Applications include low pressure measurement of gas & liquid media which do not corrode brass, Burner monitoring, Gas production, Medical Applications, etc
|
|
Dial size:
|
4", 6", and 160mm
|
|
Pressure range:
|
- 60mbar to 600 mbar
|
|
Socket:
|
Brass or stainless steel 316
|
|
Connection thread:
|
NPT , BSP, BSPT and other special specification
|
|
Capsule:
|
Phosphor bronze or stainless steel 316L
|
|
Case:
|
Stainless steel 304, Black painted steel available
|
|
Bezel:
|
Flat bayonet ring SS304,
Painted steel Flat bayonet ring available
|
|
Window (lens):
|
Tempered glass
|
|
Dial plate:
|
Single and dual scale (Psi, kPa, mbar, H2O) available
|
|
Accuracy:
|
1.6% full scale, 2.5% full scale
|
|
Zero adjust:
|
Adjustable on the dial
|
|
Option Info:
|
Other materials, ranges, connections are available upon request
|
