BATTERY TESTERS 12V~280V

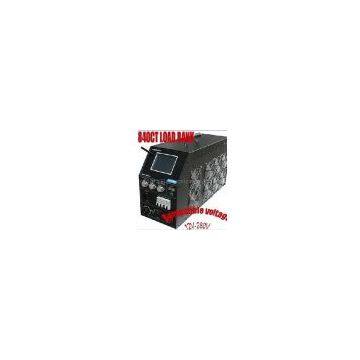

840CT Battery Discharger &Capacity Tester

 Wide voltage range battery discharger: 12V to 280V
 5.7 inch LCD touch screen for easy operation and showing various parameters real time
 Selectable discharge mode: constant current/power / resistance
 4 adjustable stop points and multiple alarm designs to control the discharge process intelligently
 Support RS232 real time monitoring by PC or USB download data after discharge
 PC software for capacity evaluation and report generation
 Optional wireless modules for 1.2V/2V/6V/12V cells voltage real-time measuring

OVERVIEW
Although battery resistance testing methods are improving and very popular, battery discharge test still is the most accurate and reliable method for actual capacity evaluation of battery groups. Because only constant current discharge can perfectly simulate the working status under loading for batteries, power supply departments in many companies and utilities keep the periodic discharge testing in their maintenance management.

Because the DC power systems in various industrial utilities are using different voltage level battery groups (24V, 48V, 110V, 120V, 220V, 240V etc.), and most of professional users hope to find an unattended and automatic instrument to simplify discharge process, the battery discharge tester with intelligent designs and super voltage variability for almost all battery types would be preferable.
FEATURES
Wide Range
840CT can support 10-300V battery groups, the application of 840CT includes:
Battery Nominal Voltage Max Discharge Current
240 V / 220 V 60 A
120 V / 110 V 120 A
96 V 120 A
48 V 120 A
24 V 120 A
12 V 60 A
Multiple Adjustable Stop Points
840CT offers 4 adjustable points for test stop points to avoid excessive discharge:
Stop Point Setting Range
Group Low Voltage 0-250.0 V
Discharge Time 0-99 Hour 99 Min
Discharge Capacity 0-9999 AH
Cell Low Voltage 0-15.00 V

840CT also offer selectable quantity of cells which voltages below the stop point, this design could help you to locate more lag batteries in once constant discharging.
Selectable Discharge Modes
840CT provides 3 discharge modes for different test requirement:
Discharge Mode Range
Constant Current 0-120 A
Constant Power 0-14 Kw
Constant resistance 0.16Ω-∞
5.7 inch Touch LCD Display
Super big size touch LCD can display all real time data and graphs and support the click operations directly, humanized input method and menu designs simplified operating process.

Presetting Function
The presetting function for discharge parameters provide 8 locations for setting up all discharge parameters in advance, this design can skip the setting procedures for the same discharging, simplified the operation and speed up the test.

Internal Memory
840CT can save several independent discharge records automatically without Laptop monitoring, non-volatile internal memory guarantee the data security even in unexpected shutdown.
The menu interface provides some management operations like reviewing, deleting, downloading to PC by USB disk or RS232.

Optional wireless cells voltage monitoring
Wireless modules for cells voltage measuring are available for 1.2V/2V/6V/12V batteries voltage monitoring during discharge test.
Each wireless module can monitor 4 batteries simultaneously. Comparing with the traditional cable voltage measuring method that each module only can monitor 1 battery, the new wiring operation is much easier.
With proper number wireless modules, main tester can real time scan and display the voltage data of each battery during the discharging, and display the histogram of all batteries to follow the battery voltage tracks in whole discharging process.

Intelligent judge program: 840CT can identify the situations that the battery voltages reach the threshold value or the signal missing by manual mistake. Avoiding manual interruption in the discharging, this revolutionary program makes the test stable and smooth.
840CT also supports cable modules for special requirements.
Multiple Protections & Alarms
Malfunctions LCD prompt beep warning
Input over-voltage √ √
Reverse polarity  √ √
Overload √ √
Overheat √ √
840CT provides ample protective measures for various abnormal situations during discharge. Automatic termination, LCD prompt and beep warning would assist users to make proper treatments.
Extendable & Compatible
Connecting with clamp current, 840CT cooperate other types in -CT series or any other load units, and clamp current can count external current in.
PC ANALYSIS SOFTWARE
Support data downloading and analyzing through real time communication or USB memory devices
The software interface includes: battery voltages curve and bar chart, battery resistances bar chart, group voltage curve, current curve, capacities histogram, data form and so on.

Powerful capacity estimating function, the software can predict the capacity of each battery in the tested group.
The software shows the data by various ways like bar charts, curve, and form. And users can magnify or minify any windows to read more details.
Automatically create EXCEL data report, it’s so convenient to send or download the data.
TYPICAL APPLICATIONS
Single unit for 1 battery group

Single unit for 2 battery groups

Parallel co-work for 1 battery group

SPECIFICATIONS
Discharge Ranges
Voltage range current range
10-15V 0-60A
15V-60V 0-120A
86-150V 0-120A
190-280V 0-60A
Current measurement
Internal current range 0-120A
Accuracy &resolution ≤±0.5%, 0.1 A
External current range 0-600A(optional current clamp)
Accuracy &resolution ≤±1%, 0.1 A
Voltage measurement
Group voltage range 0-300 V
Accuracy &resolution ≤±0.5%, 0.1 V
Cell voltage range 0-15V
Accuracy &resolution ≤±0.5%, 0.01 V
Power Supply
Power supply voltage 220 V AC (-20% to +30%)
Frequency 50/60 Hz
Power consumption 350W(max)
Communication & Storage
Communicate port USB/RS232
Internal memory 8Mbit Flash
CE Certificate
LVD standards  2006/95/EC:EN 61010-1:200
EMC standards 2004/108/EC Annex II:
EN 61000-6-1:2007
EN 61000-6-3:2007
EN 61000-3-2:2006+A2:2009
EN 61000-3-3:2008
Environment
Operation temperature -5 to 50o C
Storage temperature -40 to 70o C
Humidity 5% - 95% RH
Altitude below 4000 m
Working noise <60 dB
Dimensions&Weight
Main tester  230 x 370 x 670 mm
Carrying case 280 x 640 x 750 mm
Weight 24 kg (main tester only)
42 kg (included all accessories and carrying case)
0.3 kg (each optional wireless module)
Accessories
Carry case 1 x 280 x 640 x 750 mm, 13 kg
Power cable 2 x 3 m cables 50 mm2
AC power cord 1 x 3 wires x 1 mm2
Software 1 x CD-ROM
RS232 wire 1
User manual 1
USB disk 1 x 2GB
Current clamp 1 x 200A or 600A (Optional)
Ordering Information
Type  Description
840CT Battery discharge & capacity tester
-AS PC analysis software
-200CC 200A current clamp
-600CC 600A current clamp
WX-2612 Wireless module for 2V/6V/12V
WX-12612 Wireless module for 1.2V/2V/6V/12V
YX-12612 cable module for 1.2V/2V/6V/12V
