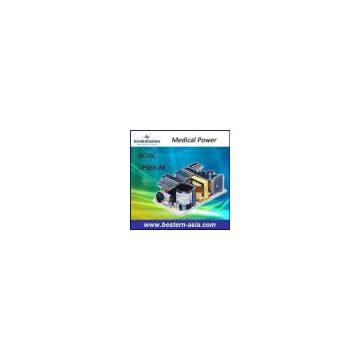

Emerson medical power supply LPS65-M

Special Features
• Medical safety approvals
• Universal input
• 3" x 5" footprint
• Remote sense
• Built in EMI filter
• Low output ripple
• Adjustable output voltage
• Overload protection
• 110 KHz switching frequency
• LPX60 enclosure kit available

Electrical Specifications
Safety
Input
Input ra nge 85 - 264 VAC (wide range)
120 - 300VDC
Frequency 47-440 Hz
Inrush current <18A peak @ 115VAC, <36A peak @230 VAC,
cold start @ 25°C
Input current 1.5A max. (RMS) @ 115 VAC
Efficiency 70% typical at full load
EMI filter FCC Class A conducted; CISPR22 Class A conducted;
EN55022 Class A conducted; VDE0878 PT3 Class A conducted
Safety ground leakage
current
<75μA @ 50/60Hz; 264VAC input
Output
Maximum power 60W for convection; 80W with 30CFM forced air
Adjustment range -5, +10% minimum
Hold-up time 20ms @ 60W load, 115VAC nominal line
Overload protection Short circuit protection on all outputs.
Case overload protected @ 110-145% above peak rating
Overvoltage protection 5V output; 5.7 - 6.7VDC. Other outputs 10% to 25%
above nominal output
Remote sense Compensates for 0.5V lead drop min. Will operate without
remote sense connected. Reverse connection protected.
