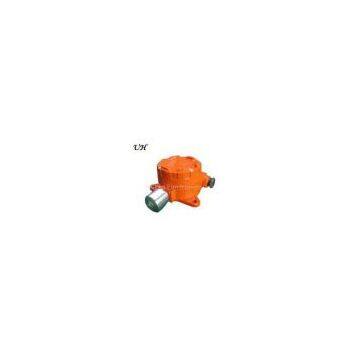

Fixed gas sensor

Fixed gas sensor can be detect combustible gas, such as: CH4, C4H10, H2S - hydrogen sulfide, Cl2 – chlorine, CO - carbon monoxide,   HCN - hydrogen cyanide, O2 – oxygen, NO2 - nitrogen dioxide, LEL combustibles, NH3 – ammonia, SO2 - sulfur dioxide, ect. You can choose one type of gas to detect according your installed place.

Features

* Use high-grade imported micro-processing chip; processing speed, high precision, reliable operation
* Use calibration, alarm set points, on-site without opening the lid, long life
* 4 ~ 20mA output signal and RS485 interfaces standard digital signal can be connected with the DCS system
* Relay output linkage
* Live misconnection protection, wiring error in the case of the transmitter is not compromised
* Output signal protection, regardless of any fault, can guarantee that no more than 25mA current signal
* Professionally designed mounting bracket, easy installation, fast
* Built in Imported gas sensor

Specifications

* Measuring principle: electrochemical catalytic combustion type; infrared semiconductor-type formula (see the gas list)
* Display: none
* Measuring range: 0-9999ppm; 0-100% LEL; 0-100% Vol
* Accuracy: ≤ ± 3% FS
* Response time: ≤ 15 S
* Set by: the security of infrared remote control
* Output signal: 4-20mA (3 wire) RS485 (4 wire) (maximum load 500 ohms)
* Alarm mode: passive contact output, contact capacity 1A 24VDC
* Transmission distance: 1,500 meters (2.5 mm2 copper cable)
* Operating Voltage: 24V
* Environmental Temperature -40 °C - +70 °C
* Environmental humidity 15 ~ 95% RH
* Dimensions 190 * 180 * 100 (mm)

If interested, please contact us by email, we will supply fixed gas sensor with stable quality and reasonable price to you.
