wireless alarm system

5 Group SMS, landline and GSM dual network communication

Ademco contact ID through GSM, ( CDMA for optional )

Program the phone numbers directly on the panel

LCD and blue back-up light

85 event log, interphone function

6 groups timed auto arm/disarm, Away/Stay arm optional

Every zone can be programmed seperately

Every detector can be set to doorbell when disarmed

Every remote can be set to request assistance siren on/off

Siren could be set to sound when away arming

Unique watchdog function, monitor the old, patient or important place.

Built in rechargable battery;Built-in siren, and timer.

Technical Parameter:

Working voltage:100~240VAC

Operating power: 9-15VDC

GSM Frequency:900/1800MHZ, 850/900/1800/1900MHZ

Wireless Frequency:433MHZ

Static current: ≤ 80mA

Alarm current: ≤ 500mA

GSM transmission power: 2W

Operating environment: Temperature: -10-50; Humidity:90%

Wired Zone : 4

Wireless Zone: 8(Totally:51 sensor)

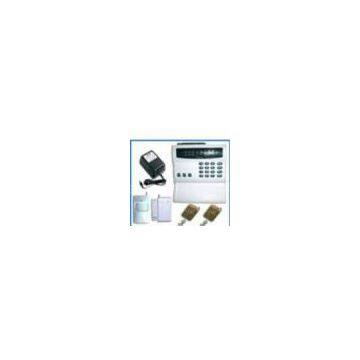

Standard Package:

- Security Alarm system (control unit) 1 pc.

- Wireless PIR detector 1 pc.

- Wireless door (gap) sensor 1 pc.

- Remote controller 2 pcs.

- Antenna 1pc.

- Power adpater 1pc.

- User manual 1pc.

Name: GSM Home Alarm System-G40

Supprot Contact ID Communication protocol

Preset 5 Telephone & SMS number

Main Features:

Integrated with GSM cellular module

Concise and elegant plastic house with simple operating interface

Contact ID communication protocol

LCD screen with calender, GSM signal level

With 30 wireless alarm zones, GSM SMS alert and Telephone alarm

One-key arm operation, coding wireless sensors

Can preset 5 groups telephone, SMS numbers, with functions of recording, voice indicating and monitoring

With three arm function: Home Arm, Away Arm, Delay Arm.

Alarming Priority, log function, built-in back-up battery, AC/DC power both available

5 Arm/Disarm ways: Remote Controller, Host Keypad, Remote Controlling Keypad(options), Telephone/Mobile phone and SMS

Outer power off inform via SMS

Internal & external antenna for your options
