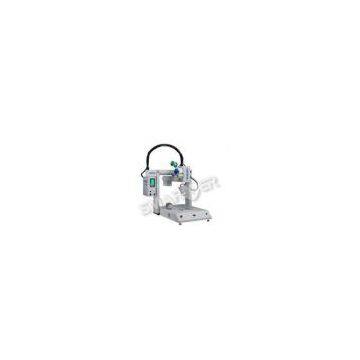

SMARTER SR3030S-YM-100 soldering robot machine with automatic solder feeder

FOB Price

Negotiable

1 (Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SMARTER		Place of Origin	China
Model Number	SR3030S-YM-100

Delivery Time:Within 30 days upon receipt of PO
Certification:TBA

Specification：

Rack（four axis manipulator） Model：SR3030S-YM		servo motor drive，embedded industrial computer control
		Outline dimension：655mm×725mm×757mm
XY axis moving range		X=300mm Y=300mm
ZR axis moving range		Z=100mm R=360o
The highest? speed	X、Y axis PTP	500mm/sec
	Z axis PTP	250mm/sec
	R axis PTP	600o/sec
	XY axis CP	500mm/sec
	XYZ axis CP	250mm/sec
Memory capacity		512MB above(MB100, 000 soldering points per MB）
Position accuracy		0.01mm
Repeatability precision		±0.02mm
Weight		60Kg
Power		300W
Air pressure		4～5kg/cm2
Application range of solder wire		Ф0.3mm~Ф1.6mm
Soldering parameter		Soldering parameter: 8 groups (Point soldering: 4sets; Sliding soldering: 3 sets，Cleaning: 1 set
Soldering temperature set range		0-500℃
Temperature control accuracy		±1℃

Function & Features /Choice basis：

	·Y axis cantilevel. Main mechanism of four axises are above the machine. so don’t need to move the soldering product. when applied for production line. no need to design complex product line. only need in line.
	Four/five axis four axis manipulator, all adopt servo drive and advanced motion control algorithm, greatly improve the positioning precision and repeat precision of end effectors? (soldering tip), and locate accurately for any soldering point in 3D spatial

	Adopt soldering embedded industrial computer control, Windows CE opera soldering system, online and off-line programming, networking homework, remote connect with the PC, support SPC (statistical process control), thoroughly record production information and opera soldering log, at most 8G storage capacity, can choose single point/single/circulation solder
