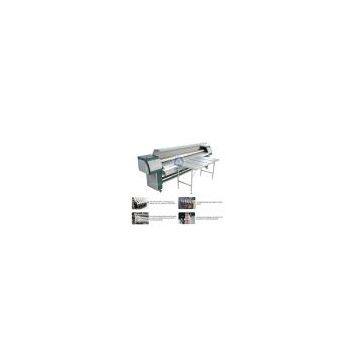

FY-3206HF Flatbed Large Format Printer 3.2m

Specification :

Model			FY-3206HF
Printhead			Drop on demand Piezo Head(SPT510-35PL)
Mumber of Printhead			6 Heads
Maximun Print Width			3,200mm(125.98”)
Print Speed*			240X540dpi 3Pass 54.9m^2/hr
			240X720dpi 4Pass 44.3m^2/hr
			240x1080dpi 6Pass 30.2m^2/hr
			360x1080dpi 6Pass 21.3m^2/hr
			720x720dpi 8Pass 16.1m^2/hr
Media	Max.width		3,300mm(129.92')
	Max.Weight		Roll media:80kg Rigid media:20kg
	Type		Frontlit,Backlit,Vinyl,Polyester,Window Film,Mesh,Leather,Backlit Film,Blue Back Paper,KT board,PS board…
	Thickness		9mm(Max.)
Heating System			3 way intelligent heater, Cooling Fan System
Auto Media Feeding& Take-up System			Equipped
Ink	Type		Solvent(C,M,Y,K,Lc,Lm)
	Capacity		1L or 5L per Color Main Tank
Auto Cleaning System			Positive Pressure Cleaning,Anti-Clogging Flash Function&Capping System
Print Interface			Optical Fiber
Power Specification			AC 220V/230V 50Hz/60Hz Printing:660W Heater:1450W
Operational Environment			Temperature:20C - 28C Humidity:40%-60%
Compatible RIP Software			Photoprint,UltraPrint,Topaz,Wasatch,Caldera,Maitop
Dimension &Weight		Machine	L4,520mm X W860mm X H1,340mm 398kg (excluding flatbed)
		Packae	L4,630mm X W880mm X H1,050mm (excluding flatbed)
