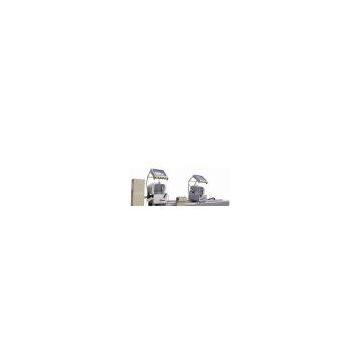

Double-head Precision Cutting Saw CNC for Aluminum Profile

Performance characteristic 1) Used for aluminum profile and curtain wall profile cutting.off. 2) Feeding system adopts imported linear guide pair ,with high accuracy and good stability. 3)Right head feeding adopts high helical pitch ball screw-lead motion ,with high accuracy driving ,locating and smooth working . 4) This machine adopts CNC technique, can achieve various profiles auto cutting off. 5) Two machine heads can achieve angular transformation automatically.. 45°and 90°cutting is available. 6) Imported carbide saw blade with high accuracy processing and good stability. 7) Imported linear bearing motion pair ensured steady processing accuracy. 8) High accuracy spindle makes the saw blade running stability. 9) Air-liquid damping cylinder achieves feeding and timing balance and moving smoothly. 10) Automatic open and shut shield makes sure the work safety and convenient. 11) Auto-induction middle profile supporter makes the profile locating and clamping Convenient. Technical parameter Power supply: 380v 50Hz motor power:2×2.2kw Motor rotational speed:2800r/min Operation air pressure:0.5~0.8Mpa Air consumption: 60L/min Saw blade specification: ø500×ø30×4.4 Z=120 Saw blade feeding speed: stepless timing Max Cutting length: 4200 mm Min Cutting length:450 mm Max cutting width:135mm Max cutting height:300mm Cutting angle:45° 90° Overall dimension:6000 mm×1750mm×1990mm Weight :about 2000kg
