Brand Name	GWT		Place of Origin	China
Model Number	GWT2V1D

Product Description

Description of goods:

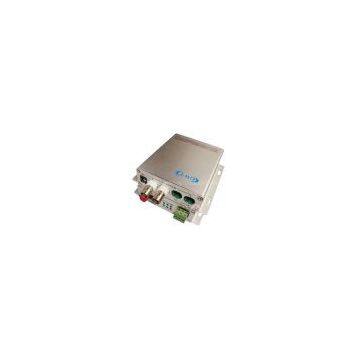

2 Channel digital video optical transmitter & receiver with one channel reverse data, Model No. GWT2V1D/GWT2V1D-M

Applications:

◆Intelligent Transportation System
　　◆Connection of Sub-network for Surveillance Center
　　◆Public Security Surveillance
　　◆High Way & Toll Station Surveillance
　　◆High Quality Video Conference
　　◆Industrial Closed Circuit Television Surveillance

Features:

◆10-bit digital code and non-compression type video transmission
　　◆Support any high-resolution video signal
　　◆5Hz-10MHz video channel
　　◆Automatic compatible PAL, NTSC and SECAM video system
　　◆With APC circuit, constant input optical power, and large dynamic range
　　◆Kilomega optical fiber transmission, large capacity, and easy to upgrade
　　◆Power supply and other parameter state indication, which can monitor the operation condition of system
　　◆Support no-damage regenerative trunk of video
　　◆Advanced self-adapting technology, and it is unnecessary to implement the adjustment of spot electrics or optics when using

◆Industry-grade design and modularization design make the equipment reliable and flexible
　　◆Can automatically restore the fuse of power supply
　　◆Working Time Without Any Trouble Is More Than 50 Thousand Hours

Specifications:

Video interface number	2- channel video
Signal system	PAL/NTSC/SECAM
Nominal input & output level	1Vp-p
Nominal input & output impedance	75Ω
Bandwidth of each channel	6.5MHz
Sampling frequency	16.6MHz
Quantification grade	8bit
Differential gain	1% typical value
Differential phase	1% typical value
Weighted signal-to-noise ratio	63dB typical value
Data interface number	1-channel reverse data
Interface port	RJ-45 or connection terminal
Interface Signal	RS-232,RS-422( full duplex ),RS-485 (2/4 wire)
Code rate	0~256Kbps
BER	≤ 10-9
Dimensions(WxDxH)	156x128x32mm
Input Voltage	AC100V-AC240V and DC-48V is optional
Operational Temperature	0 ℃ ~70 ℃
Store Temperature	-40 ℃ ~80 ℃
Humidity	5%~95% no coagulation
