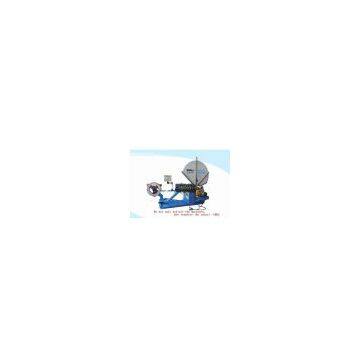

Spiral Tubeformer
US$ 32000 - 32000
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | SBKJ | Place of Origin | China | |
| Model Number | SBTF-1500C |
Product Description
|
Tube Diameter
|
ā100-ā1500mm
|
|
Tube Length
|
120-8000mm
|
|
Thickness
|
0.4-2.0mm(Galvanized steel)
0.4-1.2mm(Stainless steel)
|
|
Strip Width
|
137-140mm
|
|
Strip speed
|
1-30m/min
|
|
Lockseam
|
Outside tube,on the inside on request
|
|
Controlling System
|
PLC automatic control
|
|
Main motor power
|
11KW
|
|
Cutting motor power
|
5.5KW
|
|
Electric
|
380V/50Hz
(Acorrding to customer’s request)
|
|
Working pressure
|
0.5-0.7KMP
|
|
Dimensions(L*W*H)
|
3500x2200x2850
|
|
Weight
|
About 2800kg
|
|
Material
|
Galvanized steel, Stainless steel, Aluminum etc
|
|
Thickness and Diameter
|
1.5mm ≥ā200mm
|
|
2mm ≥ā450mm
|
