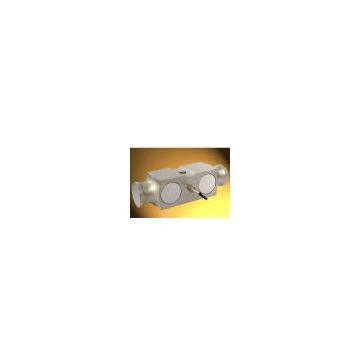

QH-42A truck scales Load Cells

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 2000 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	quanyuan		Place of Origin	China
Model Number	QH-42A

Product Description

QH-42A load cells are available in the capacities from 50klb to 100klb,

Alloy steel construction with double shear beam type.

Silicon adhesive sealed inside,waterproof,anti-corrosion,suitable for multiform environments.
Suitable for truck scales,steam lines and other electronic weighing devices.

Features:
◆Capacity: 50klb to 100klb
◆Defend grade:IP67
◆High accuracy,reliable performance.
◆Integral structure,easy installation.

Technical Specifications

Specifications:
capacity	klb	50,60,75,100
safe overload	%FS	150
ultimate overload	%FS	200
rated output	mV/V	2.0 ± 0.02	3.0± 0.03
excitation voltage	Vdc	10 ~ 15
combined error	%FS	± 0.03
zero unbalance	%FS	± 1
non-linearity	%FS	± 0.03
hysteresis	%FS	± 0.03
repeatability	%FS	± 0.02
creep	%FS/30min	± 0.05
input resistance	Ω	700 ± 10
output resistance	Ω	700 ± 5
insulation resistance	M Ω	≥ 5000 @ 50 Vdc
operating temperature range	℃	-20 ~ +55
compensated temperature range	℃	-10 ~ +40
temperature coefficient of SPAN	%FS/10℃	± 0.03
temperature coefficient of ZERO	%FS/10℃	± 0.03

Electrical connection:

●Excitation+ red Excitation- black Signal+ green Signal- white
●Four-core shielded cable with polyethylene.
●Cable diameter :ā5mm
●Cable length:3m

The cable length could be chose by customer’s application.
