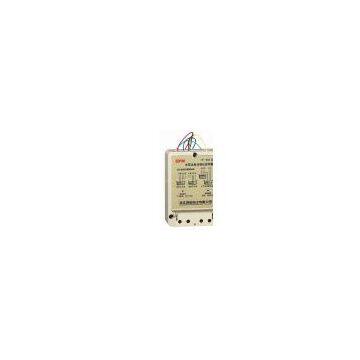

DF-96 type A water pump automatic level controller

 DF-96A pump automatic liquid level controller integrated circuit, combined with high-rise buildings on the sink (water tower) designed to enhance the water level of classification, has joint control under the sink, pool drainage and water protection and other functions, can be automatically tank water, drainage, and prevent pool water overflow or pump idling high water damage, is an industrial, household products are applicable. Very suitable for urban, rural, schools, enterprises and family-style mineral water wells - water supply wells are widely used in printing and dyeing, chemical, food, beverage, wine, sugar and other industries.

Performance characteristics

Single control head on the pool installation instructions to install the control diagram shown in PI 1

A (red line)Is the upper cistern or water tower's top water level control point,when the water reached A point, the probe touch the water level, then the controller shutdown the pump.

B (blue line)Is the upper cistern or water tower's low water level control point,when the water has fallen bellow B point,the probe B out of touch with water,the controller open the pump,and the water level rise to A point.

C (black line) C point against bottom of the upper cistern or water tower,contrat with the bottom of cistern or water tower.

D (green line),E(yellow line) conected to line C

Under a single control pool (ie drainage pond) installation instructions to install the probe as shown in PI two

A,B do not need to connect.

C is the cistern ground line,keep against the bottom of the cistern.

D Is the cistern's low water level control point,when the water level below the D point,the probe out of touch with the water,the controller shutdown the pump,the pump stop to drainage

E point is the top water level control point,when the water level reached E point,the water touch the water,the controller open the pump,the pump begain to drainage.

 Water protection installation instructions to install the probe in PI 3 shows

A,B do not to connect

C,D point is the lowest water level control point,when the water drop below this point,C or D point out of touch with the water ,the controller shutdown the pump.

E should connect with C

Up and down cistern combine control probe installation introduction

A is the upper cistern(or water tower)'s top water level control point,when water reached A point,the probe touch with water,the controller shutdown the pump.

B is the cistern(or water tower)'s lowest water level control point,when water drop below B point,the probe out of touch with water,the controller open the pump ,the upper cistern begain to store water.

C is the upper and down cistern(or water tower)'s ground line,against the bottom upper and down cistern(or water tower). If do not need to drainage,E do not need to connect.

D is the down cistern's lowest water level control point,when wate level drop below D  point,the probe touch with water,the controller shutdown the pump the cistern stop to drainage.

E is the down cistern's top control point,when water reached E point,the probe touch with water,the controller open the pump,the cistern begain to drainage.

Installation dimensions
