Home > Products > Panel Printer > 58mm Thermal Panel Printer

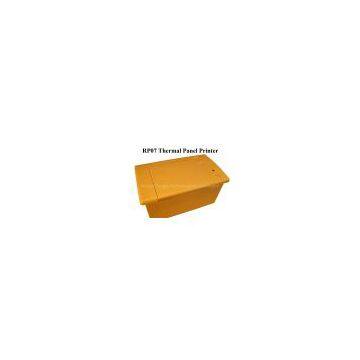

58mm Thermal Panel Printer
Negotiable
/ Set
20 Sets(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | RP07 |
Product Description
| Loading way | easy | ||
| Paper Working | Cutting way | divulsion(dentiform | |
| Print method | Direct thermal print and auto paper feed | ||
| Printing density | 384 dots/line | ||
| 8 dots/mm | |||
| Printing width | 48 mm | ||
| Max Printer Speed | 85 mm/s(max.) | ||
| Printer performance | dot distance | 0.125 mm | |
| word size(W×H mm) | 0.75×1 | ||
| dots) | 16 lattice:8×16;24 lattice:12×24 | ||
| ASCⅡSize(W×H mm) | 16 lattice:2×4; 24 lattice:1.5×3 | ||
| Drawing/Bar code | drawing/bar code | suitable | |
| Testing Method | lacking paper testing | photoelectricity sensor | |
| printer interface | TTL/RS232 | ||
| buffer | 32k | ||
| Control System | Command System | ESC printer command/WH printing command | |
| Average electricity | DC3.5V~9V (from7.2~5v,with highest speeed | ||
| and excellent effect) | |||
| less than 1.5A | |||
| Power | Max electricity | less than 3A | |
| Printer Mechanism | printing head lifespan | 50km | |
| paper item | thermal paper | ||
| paper width | 58mm | ||
| papaer thickness | 65±5um | ||
| Paper | diameter of paper roll | 30mm | |
| Environment adaptability | 10~90%RH 0~55℃;-20~55℃ | ||
| Physics Specification | |||
| Storage temperature | 10~90%RH; –25~70℃ | ||
| Dimension (W×H×D mm) | 103mm×57mm×57mm | ||
