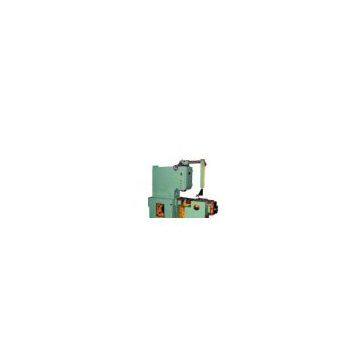

BJD91K1 series CNC high speed notching machines
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Description
|
Name and model |
BJD91K1-10 |
BJD91K1-16 |
|
Nominal pressure |
100KN |
160KN |
|
Stroke of slide |
25mm |
40mm |
|
Number of strokes per min |
180-550min‐1 |
180-550min‐1 |
|
Max. Shut height |
210mm |
220mm |
|
Adjustment of shut height |
25mm |
25mm |
|
Throat depth |
260mm |
350mm |
|
Distance between centre line of stem hole and center line of index spindle |
35~500mm |
135~650mm |
|
Number of slot |
9-999 |
9-999 |
|
Diameter of lamination |
Φ70-Φ1200mm |
Φ300-Φ1500mm |
|
Max. Punching thickness |
1.5mm |
2mm |
|
Work table size(FB×LR) |
220×420mm |
250×450mm |
|
Slide bottom size(FB×LR) |
130×170mm |
140×210mm |
|
Power |
4.0 Kw |
5.5 Kw |
|
Dimension(L×W×H) |
2730×1190×2180 mm |
3154×1150×2260 mm |
|
Weight |
~4000 Kg |
~4700 Kg |
