Home > Products > New product > Explosion Proof Tunnel Light

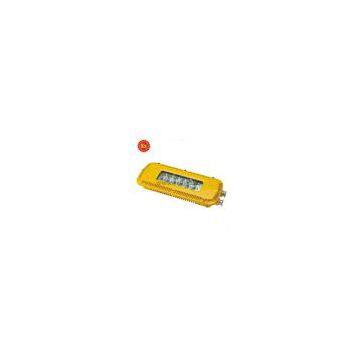

Explosion Proof Tunnel Light
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | BC9600AB |
Product Description
CERTIFICATION & APPROVALS:
GB Code:Ex d IIC T6
GB Certificate:NLE10503
Ambient Environment:-20-+40℃
Grade of Protection:IP65
Standard:
GB3836.1-2000 GB3836.2-2000
Application:
This product is applicable to long-distance centralized spot lighting or emergency lighting in explosive and flammable places, and various indoor and outdoor operation and construction sites, as well as areas for devices and facilities.
1,Dangerous places in Zone 1, Zone 2 or Zone 20, Zone 21, Zone 22;
2,Grade IIA or IIB explosive gas environment or flammable dust environment.
Characteristics of Performance:
- BC9600A can be used for normal lighting, as well as for emergency cases. BC9600B is only applied for emergency lighting and is usually off. Both Type A and Type B can start the emergency lighting when the main power supply is cut off. They can also be connected with external switch, which is started when the power supply is off.
- It uses GREE white light LED. The lamp has very excellent heat radiation effects, which has effectively solved the problem of too fast weakening of LED light source due to too high temperature.
- Strong resistant to corrosion, water and dust, applicable to various harsh environments.
- It can be mounted in pedestal or on ceiling, with the angle adjustable within +90°~-60°.
- It is provided with two connectors and can be connected in series.
|
ORDERING REFERENCE
|
Light Source
|
Rated Wattage(W)
|
luminous flux(Lm)
|
Average Useful Time(h)
|
|
BC9600A-L18;BC9600B-L18
|
LED
|
18
|
1980
|
50,000
|
|
BC9600A-L36;BC9600B-L36
|
LED
|
36
|
3960
|
50,000
|
|
Rated Voltage
|
AC220V/AC24V/AC36V
|
|
DC220V/DC24V/DC36V
|
|
|
Lighting Time in Emergency
|
18W/150min
|
|
36W/90min
|
|
|
GB Code
|
Ex d IIC T6
|
|
Environment
|
-20℃~+40℃
|
|
Ingress Protection
|
IP65
|
|
Anticorrosion Grade
|
WF2
|
|
Insulation Grade
|
I
|
|
Cable Diameter
|
Ø8mm - Ø14mm
|
|
Dimension
|
424 ×177×77mm
|
|
Weight
|
4.8Kg
|
