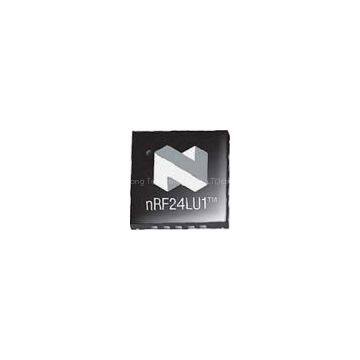

NORDIC SOC USB IC NRF24LU1P-O17Q32(DH2401)

Brand Name	NORDIC		Place of Origin	China
Model Number	NRF24LU1P-O17Q32

Key Features
• nRF24L01+ compatible RF transceiver
• Worldwide 2.4 GHz ISM band operation
• Up to 2 Mbps on air data rate
• Enhanced ShockBurst™ hardware link layer
• Air compatible with nRF24LU1, nRF24LU1+,
nRF24LE1 OTP, nRF24LE1, nRF24L01+,
nRF24L01, nRF2401A, nRF2402, nRF24E1
and nRF24E2
• Low cost external ± 60 ppm 16 MHz crystal
• Full speed USB 2.0 compliant device controller
• Up to 12 Mbps USB transfer rate
• 2 control, 10 bulk/interrupt and 2 ISO endpoints
• Dedicated 512 bytes endpoint buffer RAM
• Software controlled pull-up resistor for D+
• PLL for full-speed USB operation
• Voltage regulator, 4.0 to 5.25V supply range
• Enhanced 8-bit 8051 compatible
microcontroller
• Drop-in compatibility with nRF24LU1 and
nRF24LU1+ except for programming
• Reduced instruction cycle time
• 32-bit multiplication-division unit
• 16 + 1 kbytes of on-chip OTP memory
• 2 kbytes of on-chip SRAM
• 6 general purpose digital input/output pins
• Hardware SPI slave and master, UART
• 3 16-bit timers/counters
• AES encryption/decryption co-processor
• Compact 32-pin 5x5mm QFN package
Applications
• Compact USB dongles for wireless
peripherals
• USB dongles for mouse, keyboards and
remotes
• USB dongle 3-in-1 desktop bundles
• USB dongle for advanced media center
remote controls
• USB dongle for game controllers
• Toys
