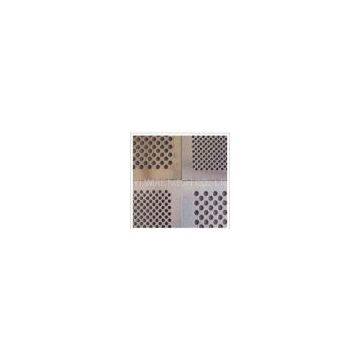

Plain Steel Perforated Metal Sheet

Material

BEIJING SYJ can provide you the following material: stainless steel, carbon steel, zinc, Galvanized, Aluminum, Brass, Copper, Plywood, Fiberboard, Rubberboard, Woodboard, Pasteboard, Al-Mg.alloyplate, , Nickel-plate, Fiber.glass, PVC.plate , Composites.

Specification

We can manufacture a wide rang of thick sheet verifying from 0.1mm to 25mm. Length is the overall measurement of the long side of the sheet. Width is the overall measurement of the -short side of the sheet. The standard sheet size is 1000mm*2000mm. and 1000mm*2500mm. The coil width 1000mm is also available. We also can process the special product for your requirement if you tell us the exact specification.

The hole shape

Round, square, long round, triangle, scale, diamond, oval, hexangular, slot etc.

Aperture

In general it is advisable to use a hole size larger than the material thickness. The closer the hole size and material thickness come to a 1 to 1 ratio, the more difficult and expensive the process is. Dependent on the material type, smaller hole size to material ratios can be achieved. The minimum diameter we can fabricate is 0.003" (0.08mm) . If you require a die that isn't already in our die bank, our experienced tool and die makers can quickly make exactly what you need at a reasonable cost.

Pattern

We have tooling available for many different hole patterns and shapes. It is more economical to choose one of the available patterns, although special hole sizes and patterns can be accommodated at additional cost.

Pitch

Hole center is the distance from the center of one hole to the center of the nearest hole in the next adjoining row.

Open area

Open area is the total area of the holes divided by the total area of the sheet and is expressed as a percent , Keep in mind that punching holes in a material add stresses that can result in distortion of the product. The higher the open area, the more material distortion takes place, especially when the perforated pattern is bordered by margins on all four sides. But these distortions can be removed by our special in house leveling process.

Margins

Margins are the blank area along the edges of the sheet. If you want the product with special margins, you should provide the width of each margin on all four sides (measured from the edge of the sheet to the edge of the first hole).Manufacturing considerations may affect margins. If the margins requested are not possible .We will replace it with the similar products as your consideration.
TolerancesThere are tolerances on thickness, pitch, openings, flatness, and shearing for perforated products. You should specify a specific tolerance , so we can give you a precise product. If not, we will according to standard tolerance.
