Home > Products > New product > 30W High Power LED, 10 serial and 3 parallel

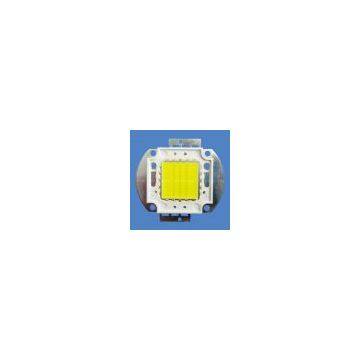

30W High Power LED, 10 serial and 3 parallel
- 0 per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | LED-P30-D |
Product Description
Color: Red/Yellow/Green/Blue/White.Select the products you need. Make sure the product Model in your orders are what you want.
Electro-Optical Characteristics (Ta=25℃)
|
Part No
|
Emitting Color
|
Chip Material
|
Lens Color
|
Forward Voltage
|
Dominant Wavelength
|
Luminous Flux
|
|
IF=1050mA
|
IF=1050mA
|
IF=1050mA
|
||||
|
LED-P30-D-Red
|
Red
|
AlGaInP
|
Water Clear
|
20-26V
|
620-630nm
|
1200lm
|
|
LED-P30-D-Yellow
|
Yellow
|
AlGaInP
|
Water Clear
|
20-26V
|
580-595nm
|
1200lm
|
|
LED-P30-D-Green
|
Green
|
InGaN
|
Water Clear
|
30-36V
|
515-530nm
|
1800lm |
|
LED-P30-D-Blue
|
Blue
|
InGaN
|
Water Clear
|
30-36V
|
465-475nm
|
480lm
|
|
LED-P30-D-White
|
Cold White
|
InGaN
|
Water Clear
|
30-36V
|
X:0.30 Y:0.31
|
2550lm
|
|
LED-P30-DW-White
|
Warm White
|
InGaN
|
Water Clear
|
30-36V
|
X:0.45 Y:0.41
|
2450lm
|
Forward current: 1050mA
Internal connection: 10 serial and 3 parallel
