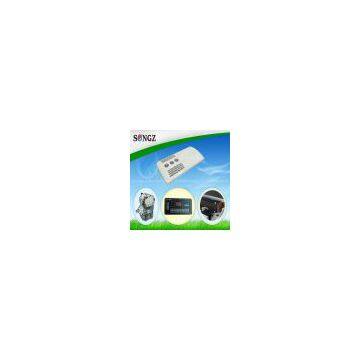

roof-mounted bus air conditioning system SZD-III/F-D

FOB Price

USD $3700 - $3700 / Piece

1 Piece(Min.Order)

Supply Ability 80 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SONGZ		Place of Origin	China
Model Number	SZD-III/F-D

Product Description

1 Standard cooling capacity:26KW
2 Max cooling capacity:28KW
3 Small dimension
4 Low cost
5 Easy for maintennance

	1. We are the only listed company[002454. SZ] producing automobile air conditioner in China. 2. Sales of our company: The sales quantity of roof mounted bus air conditioners reached 22,000 sets in 2009 and has kept the lead position for 8 years in China and 7 years in the world. We hold above 35% market share in China. We supply air conditioners for more than 60 bus manufacturers in China. Our products have been exported to South Asia and Southeast Asia, Africa, Middle East, Europe, America and so on. 2. The adventage of the SZD series: (a) The roof-mounted unit owns a streamline outline, taking on a nicer and more handsome apperance. (b)The heat-exchanger adopts tube-fin type heat exchanger of 7mm insind screw thread copper tube, therefore making high energy efficiency ratio and low oil comsumption. (c) Dighital-displayed automatic temperature control. (d) Good servicing inerchangeablity and accessibility. 3. The type SZD-III/F-D is for the city buses which the length is between 9.3~9.7 meters. 4. The detail attribute of the SZD-III/F-D air conditioner.

1. We are the only listed company[002454. SZ] producing automobile air conditioner in China.

2. Sales of our company: The sales quantity of roof mounted bus air conditioners reached 22,000 sets in 2009 and has kept the lead position for 8 years in China and 7 years in the world. We hold above 35% market share in China. We supply air conditioners for more than 60 bus manufacturers in China. Our products have been exported to South Asia and Southeast Asia, Africa, Middle East, Europe, America and so on.

2. The adventage of the SZD series:

(a) The roof-mounted unit owns a streamline outline, taking on a nicer and more handsome apperance.

(b)The heat-exchanger adopts tube-fin type heat exchanger of 7mm insind screw thread copper tube, therefore making high energy efficiency ratio and low oil comsumption.

(d) Good servicing inerchangeablity and accessibility.

3. The type SZD-III/F-D is for the city buses which the length is between 9.3~9.7 meters.

4. The detail attribute of the SZD-III/F-D air conditioner.

No.	Description	Brand	Feature
1	compressor	BITZER	Famous brand, Beijing Bitzer, high reliability
2	Evaporator blower	SONGZ	Imported axletree,high efficiency,long life time with 6000 hours
3	Condenser fan	SONGZ	Imported axletree,high efficiency,long life time with 6000 hours,low noise
4	Expansion valve	DANFOSS	First-class brand, high reliability
5	Filter drier	SONGZ	High efficiency structure. completely radial sealing.
6	Pressure security device	SONGZ	Protecting the elements and components from being damaged by abnormal pressure,high precision
7	Plug-in connector	AMP	Wholly silver coated, corrosion-resistant to acid, alkali and salt, water and dust proof.
8	Heat exchanger	SONGZ	φ7 inside screw-thread copper tube
9	Control panel	SONGZ	Digital-displayed temperature type, trouble direction
10	Pipeline	SONGZ	Stainless crinkle soft steel hose and copper tube
11	Shell	SONGZ	All aluminum (LF21),Made by mould and melding. All protected from rust by Zinc-gilt with broiled paint.
12	Belt(optional)	GATES/DONGIL	Famous brand, stable quality
13	Compressor bracket(optional)	SONGZ	Limiting 5 degree of freedom with vibration absorbing design to reduce the vibration of generator and dramatically lengthen the life.
14	Air-returning grill(optional)	SONGZ	Large air-returning area design structure, press forming by mold, attractive and handsome appearance, with high efficiency filter net
15	Fresh air system(optional)	SONGZ	Driven by the imported motor
16	Generator (optional)	PRESTOLITE	Manufactured by Sino-America joint venture PRESTOLITE Co. ,stable and reliable performance
