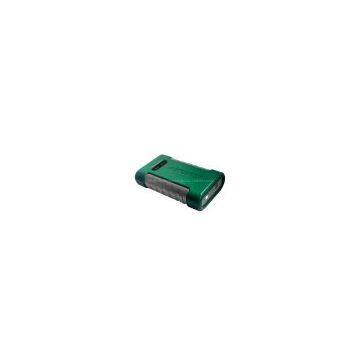

Autoboss PC-MAX Wireless VCI scanner

1.Covers more than 50 makes, 1000 vehicle systems
2.Reliable USB connection ensures its stability in complex electromagnetism
3.Uses most advanced 2.4GHz wireless communication technique
4.SAE J2534 “pass-thru” ECU reprogramming
5.Quick test function to diagnose entire vehicle
Advantage:
Free to test cars within 50-100m
(Distance depends on environment; the above distance is for reference only.)
Specification:
--Power Supply: 8-12VDC, 110-250VAC, 50Hz
--Connection: Wireless or USB
--Minimum PC System Requirement (Not included):
-- Windows XP or Vista
-- CPU 300MHz
-- 256MB RAM memory
-- 1GB Hard Disk Memory
-- CD Drive
-- Working Temperature: 10 - 176oF (-10 - 80oC
-- Humidity: < 90%
-- Dimensions: 20" X 14" X 6"
-- Weight: 17.6 lbs
Main Function:
1.Access to powertrain, chassis, body systems
2.Quick test function to diagnose entire vehicles
3.Fault code, data stream and service reset
4.Actuations, adaptations, control model coding
5.All CANBUS function supported
6.HYUNDAI immobilizer
7.Testing report saving function
8.Volkswagen immobilizer III
9.Nissan idle self learning function
10.Multi-language for international market
Fault Codes
Now you can bring down the service costs associated with fault codes. Easily read & clear vehicle specific information - manufacturer specific codes, factory codes, and generic fault codes on a particular electrical circuit. Our Recommendation: Don't forget to print it out in real time.
Quick Test & Quick Delete (select software)
Provide a bird's-eye view of all control modules in the vehicle system. The Quick Test feature allows you to quickly scan all systems in the vehicle, identify controllers with faults and provides immediate access to those systems without having to navigate through multiple menus. Our Recommendation: Don't forget to print it out in real time.
Live Data
The basics of electronic diagnostics begin with fault codes & live data. Experience high-speed response rate of 8-10 frames per second w/ real-time troubleshooting of up to 4 graphs. Diagnose signals for rich or lean conditions with live data retrieval and viewing of modules in digital and analog format. Our Recommendation: Don't forget to print it out in real time.
Component & System level actuations
Perform verification tests to validate the functionality of a particular electrical circuit. This function will bypass time-consuming labor to check the workmanship of electronic components such as switches, sensors, relays, & actuators. Use the PC-MAX to actuate control modules and see what needs replacement without removing panels and testing without the usage of a multimeter. (e.g. cylinder power balance test, EVAP system leak, EGR valve, solenoids, power windows, winshield wiper activation, etc.)
Special Functions:
Service Resets & Initialization
When components are replaced within a module (e.g. injectors, switches, mass air flow sensor, cooling temp sensor, etc.), a vehicle will run very rough. Initialization immediately re-adapts all the values, so the components will be recognized by the vehicle system. (e.g. To reset the service indicator for the vehicle such as "oil service", "service reminder light", "steering angle sensor*", etc.)
Vehicle Adjustment
Ability to adjust performance parameters. (e.g. idle RPM, idle speed adjustment, ignition timing, vehicle w/ immobilizer, set fuel synchronization, throttle-body relearn, DME Alignment, etc.)
Coding & Programming
Read & change coding has now become highly important for any new retrofit control unit in the vehicle. Contact an Diagtronics Dealer for more information.
Other Functions:
Self-learn Function
Create a personalized database system to record ideal conditions of the actual values in the vehicle system.
Record 160 Frames of Live Data
Record a real-time data stream up to 160 frames during a drive cycle. More complicated diagnosis of an intermittent problem will require the use of this function to evaluate data stream during a controlled drive cycle.
FAQ: Frequently Asked Questions
Q: What is the language version of this scanner?
A: The scanner only has English version. No other language available now.
Q: What is the difference between Autoboss V30 and Autoboss PC-MAX?
A: They have two difference. First Autoboss V30 is update via internet, Autoboss pc-max is update via CD. Second Autoboss V30 have a LED screen for display, Autoboss pc-max need connect to laptop.
