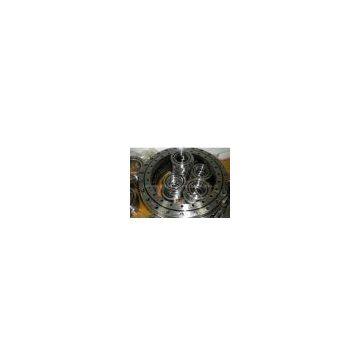

SX011860 high precision crossed roller bearings

SX series types:
SX011814  SX011818  SX011820  SX011824  SX011828  SX011832  SX011836  SX011840
SX011848  SX011860  SX011868  SX011860  SX0118/500

We are a professional manufacturer of high precision bearings,which has combine research, production and marketing together.

Our leading products are:

1.high precision crossed roller bearings :INA SX series ,XSU series ,XU series. THK RB series ,RE    series, RU series, RA series; IKO CRB series ,CRBC series, CRBH series;

2.high precision tapered crossed roller bearings: Timken’s  JXR series , XR series.

3.high precision YRT rotary table bearings, YRT series ,YRTS series ,YRTM series, ZKLDF series.

4.thrust cylindrical roller bearings.

The precision rate has reached to P5/P4/P2,ranging from 50mm~900mm.

Structure features of SX011860crossed roller bearing:

With the Crossed roller bearing, cylindrical rollers are arranged crosswise, with each roller perpendicular to the adjacent roller, in a 90°V groove, separated from each other by a spacer retainer.  This design allows just one bearing to receive loads in all directions including, radial, axial and moment loads. Since the Crossed Roller bearingachieves high rigidity and the precision can reach up to P4.P2,despite the minimum possible dimensions of the inner and outer rings,it is optimal for applications such as joints and swiveling units of industrial robots, swiveling tables of machining centers, rotary units of manipulators, precision rotary tables, medical equipment, measuring instruments and IC manufacturing machines.

The spacer retainer fitting among cross-arrayed rollers prevents rollers from skewing and the rotation torque from increasing due to friction between rollers. Unlike conventional types using steel sheet retainers,SX011860 crossed roller bearingdoes not cause displacement or locking of rollers and provides a stable rotation torque. Since the inner and outer rings are designed to be separable, the bearing clearance can be adjusted.

Usage characteristics

The inner and outer rings, which are separable, are secured to SX011860 crossed roller bearing body after the rollers and spacer retainers are installed. This procedure prevents the rings from separating from each other.  Thus, it is easy to handle the rings when installing this type.

 Installation Procedure:

1.Thoroughly clean the housing and other parts to be installed, and check to determine if deburring is required.

2.Since the Crossed Roller bearing is a thin-wall bearing type and therefore tends to misalign when it is installed, in case of this situation,gradually drive the product into the housing or onto the shaft by gently hitting it with a plastic hammer, while keeping the product horizontal. Taking care, continue to hammer until it fully contacts the reference surface.

3.Place the presser flange onto the Crossed Roller bearing . Rock the flange several times to match the bolt holes.

4.Insert the presser bolts into the holes.  Manually turn the bolts and make sure they do not display skewing caused by misalignment of the holes.

5. As is shown in the pictures below:Tighten the presser bolts in three to four steps from light to full tightening byrepeatedly securing the bolts in diagonal order.When tightening the separable inner or outer ring, slightly turning the integral outer or inner ring will correct the dislocation between the ring and the body.

     The main products of our company are crossed roller bearings, YRT rotary table bearings, crossed tapered roller bearings. The leading products include crossed roller bearing RB, RE, RU,RA,CRBC, CRBH, XSU, SX series, rotary table bearings YRT, YRTS,YRTM,ZKLDF series, crossed tapered roller bearing XR series, almost whole range of precision bearings. The accuracy grades are P5, P4, P2, and the size of inner ring are ranging from Φ50mm --- Φ1300mm. Our products are optimal for applications such as joints and swiveling units of industrial robots, swiveling tables of machining centers, precision rotary tables, medical equipment, measuring instruments and IC manufacturing machines,mainly to replace the imported bearings. Also, we can design,choose and manufacture  non-standard,large size precision bearings as customer requested.
