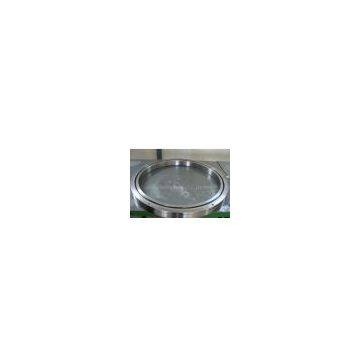

RB60040 high precision crossed roller bearings

RB60040  basic information:
inner ring:600mm    outer ring:700mm
width:40mm              weight:29Kg


RB series:  RB5013     RB7013     RB8016   RB9016   RB10016   RB10020   RB11012   RB11015   RB11020  RB12016  RB12025   RB13015   RB13025   RB14016   RB14025   RB15013   RB15025   RB15030   RB16025   RB17020   RB18025   RB19025   RB20025   RB20030   RB20035   RB22025   RB24025   RB25025   RB25030   RB25040   RB30025   RB30035   RB30040   RB35020   RB40035   RB40040   RB45025   RB50025   RB50040   RB50050   RB60040  RB70045  RB80070  RB90070    RB1000110

Products Feature:
High Rotation Accuracy The spacer retainer fitting among cross-arrayed rollers prevents rollers from skewing and the rotational torque from increasing due to friction between rollers. Unlike conventional types using steel sheet retainers, the Cross-Roller Ring does not cause unilateral contact of roller or seize. Thus, even under a preload, the Cross-Roller Ring provides stable rotation.

Application
It is optimal for applications such as joints and swiveling units of industrial Robots, swiveling tables of machining centers, rotary units of manipulators, precision rotary tables, Medical equipment, measuring instruments and IC manufacturing machines.

Installation Procedure:

1.Thoroughly clean the housing and other parts to be installed, and check to determine if deburring is required.

2.Since the Crossed Roller bearing is a thin-wall bearing type and therefore tends to misalign when it is installed, in case of this situation,gradually drive the product into the housing or onto the shaft by gently hitting it with a plastic hammer, while keeping the product horizontal. Taking care, continue to hammer until it fully contacts the reference surface.

3.Place the presser flange onto the Crossed Roller bearing . Rock the flange several times to match the bolt holes.

4.Insert the presser bolts into the holes.  Manually turn the bolts and make sure they do not display skewing caused by misalignment of the holes.

5. As is shown in the pictures below:Tighten the presser bolts in three to four steps from light to full tightening byrepeatedly securing the bolts in diagonal order.When tightening the separable inner or outer ring, slightly turning the integral outer or inner ring will correct the dislocation between the ring and the body.

     The main products of our company are crossed roller bearings, YRT rotary table bearings, crossed tapered roller bearings. The leading products include crossed roller bearing RB, RE, RU,RA,CRBC, CRBH, XSU, SX series, rotary table bearings YRT, YRTS,YRTM,ZKLDF series, crossed tapered roller bearing XR series, almost whole range of precision bearings. The accuracy grades are P5, P4, P2, and the size of inner ring are ranging from Φ50mm --- Φ1300mm. Our products are optimal for applications such as joints and swiveling units of industrial robots, swiveling tables of machining centers, precision rotary tables, medical equipment, measuring instruments and IC manufacturing machines,mainly to replace the imported bearings. Also, we can design,choose and manufacture  non-standard,large size precision bearings as customer requested.
