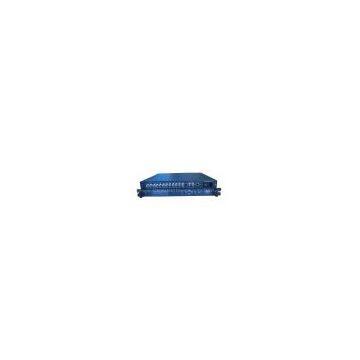

SD 4-IN-1 H.264 IP Encoder

Overview:

SD 4-IN-1 H.264 IP Encoder is an easy to use, powerful h264 encoder. Supports analog composite video and mono or analog stereo, etc.; Compressed data output format is ASI, compression manner is Mpeg-4 part 10. Encoder makes real-time encoding and multiplexing and generates one MPTS multi-program transmission path flow. It is in full compliance with H264 standard, with a strong compatibility. Its volume is IU computer case. It can completely off-line set and run by the front panel LCD display.

Features:

. Input 4 channels audio and video signal and generate one MPTS stream output.

. Video encoding compatible with H.264/AVC;

. High-fidelity audio processing R / L channel, stereo input;

. Output bit rate continuously adjustable, flexible and easy to use;

. Rich input-output interface to achieve freedom of access;

. Local and remote control of network management;

. LCD display, easy and flexible operation;

. High reliability design, stable operation;

. Stream multiplex function;

. PID display and settings;

. SDT, program name, provider settings;

Technical Specification:

Network Management:

P1: MPEG-2/H.264 encoder-public setting

P2: MPEG-2/H.264 encoder-video setting

P3: MPEG-2/H.264 encoder-audio setting

P4: MPEG-2/H.264 encoder-system setting

P5: MPEG-2/H.264 ASI-IN output(only for 5in1 encoder)

P6: MPEG-2/H.264 encoder-IP output(only for IP encoder)
