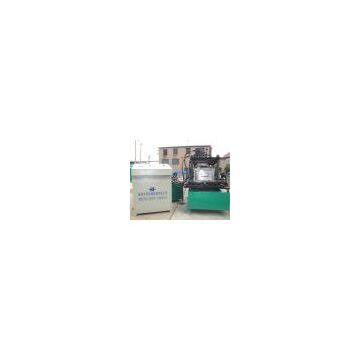

C purlin roll forming machine
Negotiable
/ Set
1 Set(Min.Order)
- 20 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | HIGHFULL | Place of Origin | China | |
| Model Number | HF |
Product Description
Detailed Product Description
1.High Quality(No damage parts)
2.No.1 Service(with warranty and one year guarantee repair)
C purlin roll forming machine, roll forming machine, C profile steel roll forming machine
Technical specifications:
| Material Width | 500mm max |
| Material Thickness | 2.0mm- 3.0mm |
| Forming speed | 12m-15m/min |
| Forming stations | 15 |
| Material of the main shaft and rollers |
forged Cr12, queching HRC58-62° |
| Material of hydraulic cutter |
Cr12 Mov |
| Power of main motor | 11kw |
| Power of hydraulic station | 7.5kw |
| Electric control system | PLC |
| Driving system |
chain driven by motor reducer |
| Dimensions |
about 10500mmx1500mmx1400mm. |
| Function | forming C purlin |
C purlin forming machine
C80-C300 (C80,C100,C120,C140,C150,C160,C180,C200,C250,C300), can design and make the machine according to the requirement of the clients.
The equipment include
1. Un-coiler, 1 set
2. Main Roll forming machine, 1 set
3. Hydraulic cutting, 1 set
4. Hydraulic station, 1 set
5. Electric controlling system, 1 set
6. Product rack (un-powered), 1 set
7. Instruction Book, 1 piece
