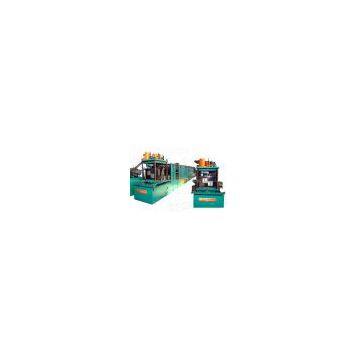

Z purlin roll forming machine
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | HIGHFULL | Place of Origin | China | |
| Model Number | HF |
Product Description
Detailed Product Description
Automatic C and Z purlin roll forming machine1.High Quality(No damage parts)
2.No.1 Service(with warranty and one year guara
Automatic C and Z purlin roll forming machine, C purlin roll forming machine, roll forming machine, steel profile roll forming machine,
Technical specifications:
1. Material Width: 500mm max.
2. Material Thickness: 2.0mm-3.0 mm.
3. Forming speed: 12m-15m/min.
4. Forming stations: 15
5. Material of the main shaft and rollers: forged Cr12, queching HRC58-62
6. Material of hydraulic cutter: Cr12 Mov
7. Power of main motor : 11kw.
8. Power of hydraulic station: 7.5kw.
9. Electric control system: PLC.
10. Driving system: chain driven by motor reducer
11. Dimensions: about 10500mmx1500mmx1400mm.
12.Function: forming C purlin
C80-C300 (C80,C100,C120,C140,C150,C160,C180,C200,C250,C300), can design and make the machine according to the requirement of the clients.
The equipment include:
1. Un-coiler, 1 set
2. Main Roll forming machine, 1 set
3. Hydraulic cutting, 1 set
4. Hydraulic station, 1 set
5. Electric controlling system, 1 set
6. Product rack (un-powered), 1 set
7. Instruction Book, 1 piece
