- Dongguan Large Electronics Co., Ltd
- Main products: carbon, alkaline, Li-Mn, Ni-Cd, Ni-MH, lead acid and li-ion batteries
Home > Products > li-ion battery pack > li-ion batteries for handheld device

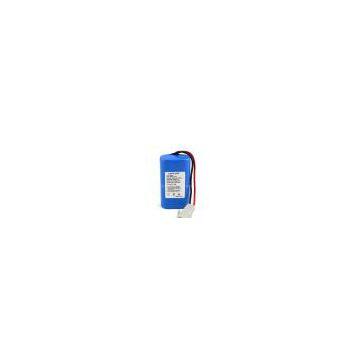

li-ion batteries for handheld device
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | 01BQ579-02 |
Product Description
li-ion batteries for handheld device
1. Combination way: ICR18650-2S1P
2. Rated Voltage: 7.4V
3. Norminal Capacity: 2200mAh
4. Standard continuous discharge current: 0.2C
5. Max continuous discharge current: 1C
6. Working temperature: charge: 0~45℃/discharge: -20~60℃
7. Dimension: MAX 22*37.5*71mm
8. Internal resistence: ≤250mΩ
9. PCM: IC-S8242AAY+MOQ-AO8810
10. Protection lead: JST ELP-02V-2P reverse plug UL1007/18#, length: 95mm
11. Protection Parameter:
overcharge protection voltage/each serial: 4.25±0.025V
overdischarge protection voltage: 3.0±0.1V
over current: 5~10A
7.4V/2200mAh li-ion batteries for handheld device
1. Combination way: ICR18650-2S1P
2. Rated Voltage: 7.4V
3. Norminal Capacity: 2200mAh
4. Standard continuous discharge current: 0.2C
5. Max continuous discharge current: 1C
6. Working temperature: charge: 0~45℃/discharge: -20~60℃
7. Dimension: MAX 22*37.5*71mm
8. Internal resistence: ≤250mΩ
9. PCM: IC-S8242AAY+MOQ-AO8810
10. Protection lead: JST ELP-02V-2P reverse plug UL1007/18#, length: 95mm
11. Protection Parameter:
overcharge protection voltage/each serial: 4.25±0.025V
overdischarge protection voltage: 3.0±0.1V
over current: 5~10A
