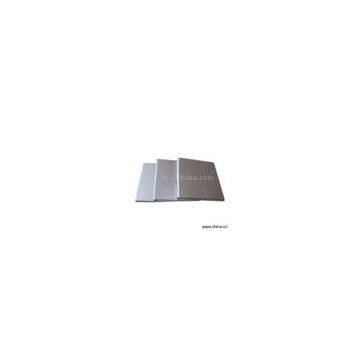

Sell Vacuum Insulation Panel

Model No.:
Product Origin:China
Brand Name:GOOT
Price Terms:FOB Xiamen, CFR, CIF
Payment Terms:L/C, T/T
Certification:
Description:VIP main performance 1) Size: according to customer's request (maximum 1700mm*700mm*35mm) 2) Core material: superfine fiberglass 3) Thermal conductivity less than 4mw/m.k (under standard environmental condition: ambient temperature 24, relative humidity 50% 4) Density: about 230kg/m3 5) Thickness: 10mm~35mm 6) Internal pressure: 0.1Pa 7) Compressive strength: 0.14MPa ~ 0.25 MPa 8) Operating ambient: -50 - +70 9) External tolerance of VIP: ±1mm 10) Packing: carton with foam and air bubble film 11) Thermal Conductivity of VIP of broken film: about 35mw/mk 12) Service life: 10-15 years under standard environmental condition. VIP operating instruction: 1) The thermal performance will be prominent if the percentage of VIP coverage is more than 65. 2) Avoid damage caused by crash and breakage by pointed weapon during storage. 3) If condition permit, put aside the VIPs for 24~48 hours to check the air inflow. 4) Avoid bending and constraint during installation.
