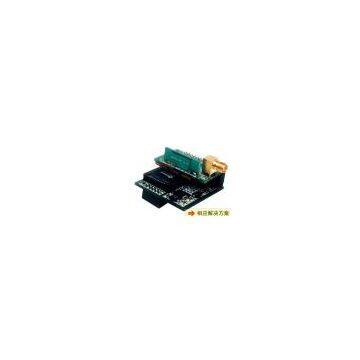

China (Mainland) Bluetooth Universal External Module

Brand Name	JINOU		Place of Origin	China
Model Number	JINOU-3262

Specifications: Introduction: Bluetooth External Wireless Universal Interface Module has timing interfaces similarwith other universal chip and reinterpreted and encapsulated existing bluetoothinstructions. Average users and engineers can freely use it as a general moduleto give all the products bluetooth wings. The core bluetooth chip of JINOU-3262 consists of the following function cells: RFCell, Link Control Cell, Link Management Cell, and Software Function Cell. Bluetoothchip applies short distance RF link, which is integrated in 9x9mm microchip,operating on 2.45GHz ISM global band. In combination with the circuit switchand package switch, Bluetooth broadband protocol supports voice and data transmission.Each channel supports 64Kbps synchronous voice link and 721Kbps or backhaul57.6Kbps asymmetrical link on either side. According to bluetooth standard,Bluetooth Universal External Module adopts TDMA technology, supports asynchronousdata transmission and synchronous voice transmission, provide protocol conversionfunction for communication interface standards, such as RS232, USB, UART, UniversalLPT and so on. By utilizing embedded chip development tech and softwaretech, JINOU-3262 implement standard bluetooth communication interfaces under bi-CPUand single CPU mode, and provide user flexible and seamless wireless upgradetechnique. PS. Dimension could be little smaller per your requirement FEATURES: 1.Symbol Rate 1Mbps 2.Link Mode SCO/ACL, support Circuit Exchange and Grouping Switch Operation 3.Transmission Rate Voice Rate 64Kbps, Data Rate: 721kbps/57.6kbps if asymmetrical; 432.6kbps if symmetrical 4.Power 0dbm or 20dbm 5.Error Correction 1/3FEC,2/3FEC,ARQ 6.Valid Range Up to 15m 7.Frequency Band 2.402~2.480GHz 8.Interfaces supported RS232,USB,UART,LPT 9.Link Type Point to Point, Point to Multipoint (up to 7 points) 10.Max.TX/RX ACL package 1KByte 11.Dimensions 25mm(L)*20mm(W)*10mm(H)
