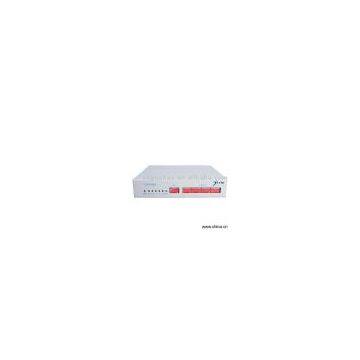

Sell V.35 Interface Fiber Modem

Model No.:GH-DH30V
Product Origin:China
Brand Name:
Price Terms:FOB Shenzhen
Payment Terms:T/T,L/C
Certification:ISO9001
Description:Features: 1) Has two row of LED: one indication local status and the other indication remote status 2) The V.35 rate is N x 64K, N＝1 ~ 32 3) Has three loopback modes: fiber interface LoopBack (ANA), V.35 interface LoopBack (DIG), commands remote modem V.35 interface loopback (REM) 4) Remote adjustment of velocity for the remote device will be available when the local setting is into the main clock and the remote setting is into line CLK 5) V.35 fiber modem matches V.35 fiber by pair, one G.703/V.35 interface conversion can be save out 6) Can be connected with other DCE device in rear 7) Power: AC 85V - AC 275V, DC±48V Fiber interface: 1) Fiber type: single/dual module fiber optical 2) Wavelength: 850nm, 1,310nm, 1,550nm 3) Interface: SC, FC or ST optical 4) Code: 1B1H 5) Module: single/dual fiber module 6) Distance: 60km - 120km E1 interface: 1) Code type: HDB3 2) Rate: 2.048mbps±50ppm 3) Complies with ITU-TG.703 4) Impedance: 75Ω 5) Interface: BNCV.35 interface 6) Operation mode: DTE, DCE 7) Code: N x 64k (N = 1-32) 8) Power: AC 220V or DC-48V optional 9) Dimensions: 270 (L) x 130 (W) x 40mm(H) Ordering information: GH-DH30V
