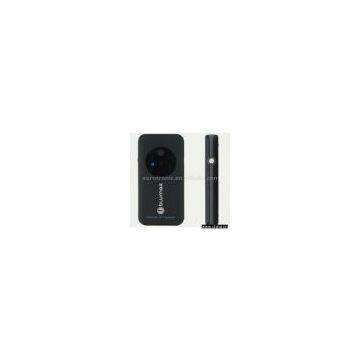

Sell Bluetooth GPS Receiver

Place of Origin	China

Model No.:
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:
Description:Function: * Adopt high sensitivity SiRF Star III chip. * Fast position cold start in less then 45sec. * 20 GPS channel quick receive GPS singal,quick position in very weak GPS satellite singal area. * Bluetooth V 1.1 easy to connect with mobile phone with Bluetooth function or PDA etc. * Build-in battery can ensure build-in FLASH memory backup trace data and quick position. * Full compatible with Bluetooth SPP. * Support A-GPS. * Build-in rechargeable charging battery, ensure normal working over 9 hours. * Three colors of LED indicate Bluetooth, GPS and battery charging state respectively. * With a magnet easy to fix on front board of car. Performance: * Channel: SIRF Star 20 channel * Profile: standard NMEA 0183 profile (V.3.01): GGA, GSA, GSV, RMC, VTG, ZDA (agree default setting: RMC, GGA) * Transmission baud rate: 57600 * Working frequency: L1, 1575.42MHz * Data: suppoet NMEA 0183 v2.2 data profile * Support: A-GPS * Fastest update rate: 1 Hz * Sensitivity acquire: -155dBm * Trace: -159dBm * Hot start: 1 sec.(Average) * Warm start: generall: 35 sec * A-GPS: 5sec * Cold setup: general: 42sec * A-GPS: 10sec * Reseaching time: general 0.1sec * Position precision degree: RMS: abour 5m * Antenna type: build -in antenna * LED indicator light: green indication GPS position state Blue indicator light Bluetooth connection state Yellow/red double color lighr:low battery and charging state. Battery and charging time: * Battery type: rechargeable Li-polymer battery * Battery capacity: 3.7V 850mAh * Normal charging time:2 hours Power: * Power supply: DC 5V * Power comsuption when bluetooth is connected - 102 mA in GPS acquiring, 98 mA in GPS tracking100mA(avg.) when bluetooth is pairing - 130 mA in GPS acquiring, 126 mA in GPS tracking * Power saving mode auto power OFF after Bluetooth being disconnected for 5 minutes * Low voltage warning red LED ON when battery has only 20 minutes power left Dynamics: * Speed fastest 515 m/sec * Height highest 18,000 m * Accelerated speed 4G Dynamics: * Speed fastest 515 m/sec * Height highest 18,000 m * Accelerated speed 4G Bluetooth: * Version V1.1 * Connecting interface Bluetooth SPP * Working distance Class 2, up to over 10 meters * Modulation FHSS / GFSK * RF channels 79 * Output sensitivity -80 dBm * Baud rate 57600 * Output PWL 4 dBm Specification dimension and working condition: * Dimension: about 87(L) x 45(W) x12(H) mm * Working temperature: -10°C to + 60°C * Working relative humidity: 5% ~ 95%
